BEYMA 118ND/W -18" LIGHTWEIGHT WOOFER
|
|
|
BEYMA 118ND/W -18" LIGHTWEIGHT WOOFER |
|
LARGE 4.5" VOICE COIL, HANDLES 1,400 WATTS & WEIGHS 15.4LBS! |
|
|
|
BEYMA 118ND/W |
|
No Longer Available |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
25Hz
- 2.5kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
4.5" / 114mm |
| Recom. Enclosure Volume | 2.8-7.0 ft3 / 80-200 Liters |
| BL Factor | 25.3 |
| Voice Coil Length | 21 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 29 mm |
| Magnetic Assembly Weight | 10.78 lb. / 4.9 kg. |
| Mounting Information | |
|
Overall Diameter |
18" / 460mm |
| Bolt Circle Diameter | 17.24" / 438mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 16.34" / 415mm |
| - Rear Mount | 15.75" / 400mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.42 ft3 / 12 Liters |
|
Overall
Depth |
8.11" / 206mm |
|
Net
Weight |
17.6 lb. / 8 kg. |
| Shipping Weight | 21,34 lb. / 9.7 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | High Stiffness Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Former | Polyimide Fiber Glass |
| Spider | Nomex w/ Dual Spider |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 36 Hz |
|
Impedance
(Re) |
6.1 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 14.1 |
| Electrical Factor(Qes) | .41 |
| Total Q (Qts) | .4 |
| Comp. Equivelant Vol. (Vas) | 8.79 ft3 / 249 Liters |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Surface Area of Cone (Sd)m2 | 0.13m2 |
| Reference Efficiency | 2.7% |
| Displacement Volume (Vd) | 900 cm3 |

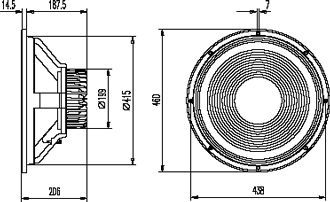

| Dimensions | |
 |
|

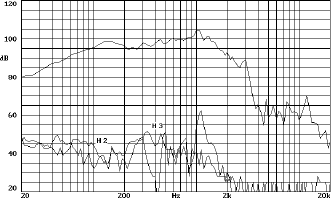

| Frequency Response & Distortion Curves | |
 |
|

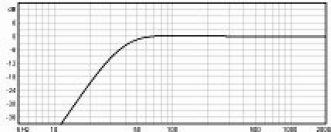

| Predicted Low Frequency Response(Bass Reflex): Vb:150L & Fb:37Hz | |
 |
|

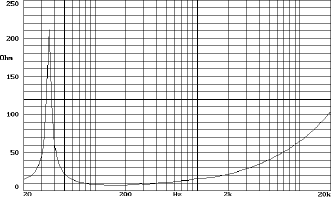

| Free Air Impedance Curve | |
 |
|
