BEYMA 112ND/W - 12" LIGHTWEIGHT SPEAKER
|
|
|
BEYMA 112ND/W - 12" LIGHTWEIGHT SPEAKER |
|
NEW LIGHTWEIGHT POWERFUL12" HANDLES 1,400 WATTS PROGRAM! |
|
|
|
BEYMA 112ND/W |
|
No Longer Available |
|
|
SPEAKER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
35Hz - 3.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | .7-2.12 ft3 / 20-60 Liters |
| Voice Coil Length | 23 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 35 mm |
| BL Factor | 18.2 N/A |
| Magnetic Assembly Weight | 10.78 lb. / 4.9 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.28" / 312mm |
|
Bolt
Circle Diameter |
11.61" / 295mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.18" / 284mm |
| - Rear Mount | 11.02" / 280mm |
|
No.
Of Mounting Holes |
8 |
| Volume Displaced By Driver | 0.19 ft3 / 5.5 Liters |
| Overall Depth |
5.04"
/ 128mm |
| Net Weight | 13.97 lb. / 6.35 kg. |
| Shipping Weight | 15.73 lb. / 7.15 kg. |
|
Materials |
|
| Basket | Die-Cast Aluminum |
| Cone | High Stiffness Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Spider | Double Nomex |
| Metal Parts | Anti-Corrosion |
| Magnet | High Energy Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 12.2 |
| Electrical Factor(Qes) | .43 |
| Total Q (Qts) | .41 |
| Comp. Equivalent Vol. (Vas) | 1.94 ft3 / 55 Liters |
| Voice Coil Overhang (Xmax) | 8.0 mm |
| Reference Efficiency | 1.4% |
| Displacement Volume (Vd) | 437 cm3 |
|
Dimensions |
|
 |
|
|

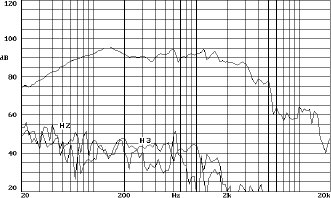

Frequency Response & Distortion Curves |
|
|
|
|

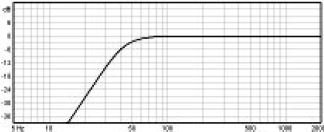

| Predicted Low Frequency Response(Bass Reflex): Vb:50L & Fb:45Hz | |
 |
|

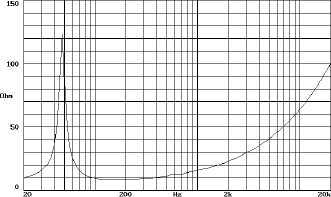

| Free Air Impedance Curve | |
 |
|
