BEYMA 10MI100 - 10" MID-FREQUENCY SPEAKER
|
|
|
BEYMA 10MI100 - 10" MID-FREQUENCY SPEAKER |
|
THE CLARITY & SMOOTH SOUND FROM THIS 10" MID-BASS IS OUTSTANDING! |
|
|
|

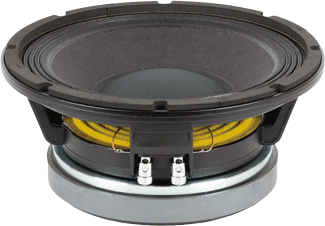

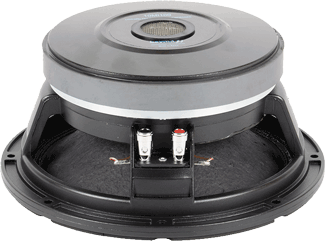

BEYMA 10MI100 |
|
Item Price: $199.95 New Low Price |
|
|
LOW 2ND & 3RD HARMONIC DISTORTION. CHECK GRAPH BELOW. |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350 Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
70Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
3" / 77mm |
| Recom. Enclosure Volume | .7-1.77 ft3 / 20-50 Liters |
| Voice Coil Length | 13.5 mm |
| Air Gap Height | 9.5 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 21.6 N/A |
| Magnetic Assembly Weight | 14.2 lb. / 6.5 kg. |
|
Mounting Information |
|
|
Overall Diameter |
10.25" / 260.5mm |
| Bolt Circle Diameter | 9.58" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.0" / 228mm |
| - Rear Mount | 9.05" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
|
Overall
Depth |
4.72" / 120mm |
|
Net
Weight |
15.6 lb. / 7.1 kg. |
| Shipping Weight | 16.5 lb. / 7.5 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 89 Hz |
| Impedance (Re) | 6.2 ohms |
| Coil Inductance (Le) | 2.3 mH |
| Mechanical Q (Qms) | 7.2 |
| Electrical Factor (Qes) | .26 |
| Total Q (Qts) | .25 |
| Comp. Equivelant Vol. (Vas) | 0.71 ft3 / 20 Liters |
| Voice Coil Overhang (Xmax) | 2.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0380m2 |
| Reference Efficiency | 5.2% |
| Displacement Volume (Vd) | 75 cm3 |
|

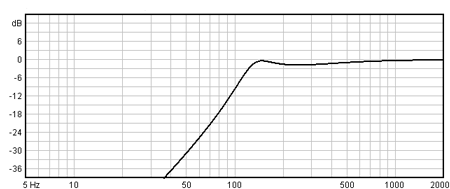

Low Freq. Response: Bass Reflex Cabinet Vb=20L, Fb=130HZ |
|
|
|
|
|

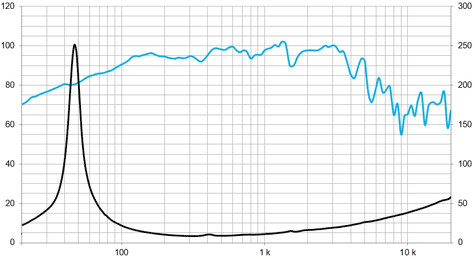

Frequency Response & Distortion Curves |
|
|
|
|
|

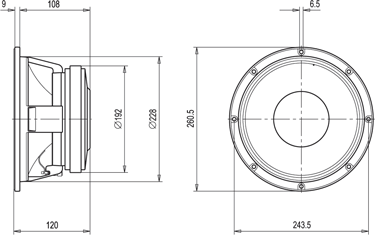

MOUNTING INFORMATION |
|
|
|
|
