BEYMA 10LW30 - 10" ULTRA LIGHT SPEAKER
|
|
|
BEYMA 10LW30 - 10" ULTRA LIGHT SPEAKER |
|
ULTRA LIGHT 10" WOOFER W/ 700 WATTS PROGRAM POWER HANDLING! |
|
|
|
BEYMA 10LW30 |
|
No Longer Available |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
35Hz
- 3.5kHz |
|
Sensitivity
(1W/1m) |
94dB |
|
Voice
Coil Diameter |
3"
/ 77mm |
| Recom. Enclosure Volume | .7-2.5 ft3 / 20-70 Liters |
| Voice Coil Length | 17 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 25 mm |
| Magnetic Assembly Weight | 4.85 lb. / 2.2 kg. |
|
Mounting Information |
|
|
Overall Diameter |
10.26" / 260.5mm |
|
Bolt
Circle Diameter |
9.59"
/ 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 8.98" / 228mm |
| - Rear Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
|
Overall
Depth |
4.29" / 109mm |
|
Net
Weight |
6.39 lb. / 2.9 kg. |
| Shipping Weight | 7.06 lb. / 3.2 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | High Stiff Paper |
| Surround | Treated Cloth |
| Spider | Cotton |
| Voice Coil | Edgewound Aluminum Ribbon |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | High Energy Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 38 Hz |
|
Impedance
(Re) |
6.1 ohms |
| Coil Inductance (Le) | 1.2 mH |
| Mechanical Q (Qms) | 9.9 |
| Electrical Factor(Qes) | .24 |
| Total Q (Qts) | .23 |
| Comp. Equivalent Vol. (Vas) | 1.98 ft3 / 56 Liters |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Effective Surface Area (Sd) | .0350 m2 |
| Reference Efficiency | 1.2% |
| Displacement Volume | 174 cm3 |
|

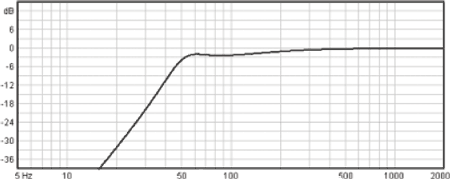

Low Freq. Response: Bass Reflex Cabinet-Vb=30L, Fb=50Hz |
|
 |
|

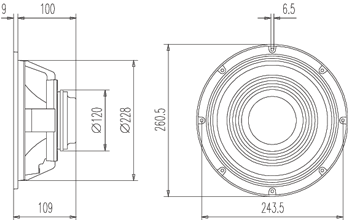

| Dimensional Drawings | |
 |
|
