BASS LITE CA2010 - 10" WOOFER
|
|
|
BASS LITE CA2010 - 10" WOOFER |
|
LIGHTWEIGHT 10" HAS NICE LOWS & CRISP MID TONE FOR BASS GUITAR! |
|
|
|
SOLDOUT. NO LONGER AVAILABLE. RECOMMEND FAITAL PRO 10FE200. |
|
WOOFER
MODEL |
BassLite CA2010 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10"
/ 254mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
150 Watts |
|
Frequency
Response |
48Hz
- 7kHz |
| Sensitivity | 93.5dB SPL |
|
Voice
Coil Diameter |
2"
/ 50.8mm |
|
Net Weight |
3.6lbs. / 1.6kg. |
| Shipping Weight | 4.7lbs./ 2.1kg. |
| Rec. Enclosure Volume (Sealed) | .6-.8 cu.ft. / 17-23 Liters |
| Rec. Enclosure Volume (Vented) | .8-1.9 cu.ft. / 23-54 Liters |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
10.25" / 260.4mm |
| Bolt Circle Diameter | 9.73" / 247.1mm |
| Baffle Cutout Diameter | 9.13" / 231.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7mm |
| Overall Depth | 4.75" / 121mm |
| Magnet Weight | 4 oz. |
|
MATERIALS |
|
| Cone | Aluminum Alloy (Blue) |
| Voice Coil | Copper |
| Magnet | Neodymium |
| Basket | Die-cast Aluminum |
| Surround | Cloth |
| Dust Cap | Solid Composition Felt |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 51 Hz |
| Impedance (Re) | 5.46 ohms |
| Coil Inductance (Le) | 0.55mH |
| Electromagnetic Q (Qes) | .52 |
| Mechanical Q (Qms) | 17,5 |
| Total Q (Qts) | .51 |
| Compliance Equiv. Vol. (Vas) | 49 Liters/1.7cu. ft. |
| Voice Coil Overhang (Xmax) | 3.5mm |
| Surface Area of Cone (Sd) | .03607 m2 |
| BL Product (BL) | 11.2 T-M |
| Peak Dia. Displacement Volume(Vd) | 126cc |
|

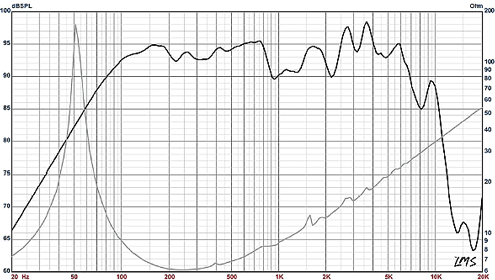

BASSLITE CA2010 RESPONSE CURVE |
|
|
|
|
