Genuine Eminence
BASS LITE C2515 -15" WOOFER
|
|
|
BASS LITE C2515 -15" WOOFER |
|
NICE 4 OHM LIGHTWEIGHT 15" SPEAKER IS AN EXCELLENT CHOICE FOR BASS GUITAR! |
|
|
|
Item Price: $114.99 |
|
WOOFER
MODEL |
Bass Lite C2515 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
15" / 381mm |
|
Impedance |
4 ohms |
|
RMS Power Rating |
300 Watts |
|
Frequency Response |
52Hz - 2.5kHz |
| Sensitivity | 98dB SPL |
|
Voice Coil Diameter |
2.5" / 63.5mm |
| Net Weight | 5.7lbs. / 2.6kg. |
| Shipping Weight | 8.6lbs. / 3.9kg. |
| Rec. Enclosure Volume (Sealed) | 1.6-2.9 cu.ft. / 45-82 Liters |
| Rec. Enclosure Volume (Vented) | 3.0-4.2 cu.ft. / 85-119 Liters |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.32" / 389.1mm |
| Bolt Circle Diameter | 14.56" / 369.9mm |
| Baffle Cutout Diameter | 14" / 355.6mm |
|
No. Of Mounting Holes |
8 |
| Mounting Hole Diameter |
0.28" / 7mm |
| Overall Depth |
6.9" / 175mm |
| Magnet Weight | 7 oz. |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Copper |
| Magnet | Neodymium |
| Basket | Die-cast Aluminum |
| Surround | Cloth |
| Dust Cap | Solid Composition Paper |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 38Hz |
|
Impedance
(Re) |
3.72 ohms |
| Coil Inductance (Le) | 0.39mH |
| Electromagnetic Q (Qes) | .50 |
| Mechanical Q (Qms) | 4.7 |
| Total Q (Qts) | .45 |
| Compliance Equiv. Vol. (Vas) | 260 Liters/9.2cu. ft. |
| Voice Coil Overhang (Xmax) | 4.5mm |
| Surface Area of Cone (Sd) | .0856m2 |
| BL Product (BL) | 11.1 T-M |
| Peak Dia. Displacement Volume(Vd) | 381cc |
|

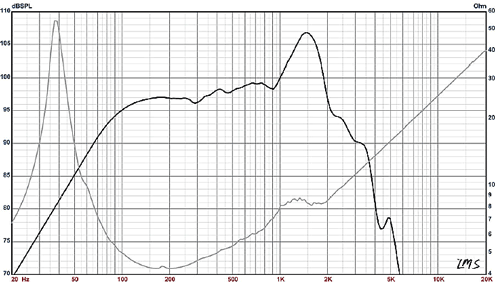

BASSLITE C2515 RESPONSE CURVE |
|
|
|
|
