ALPHALITE-6A-CBMR
|
|
|
ALPHALITE-6A-CBMR |
|
6.5" MID-BASS SPEAKER HANDLES 100 WATTS RMS & WEIGHS ONLY 2.2LBS |
|
|
|
No Longer Available |
|
WOOFER
MODEL |
ALPHALITE-6A-CBMR |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
6.5"
/ 152.4mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
100
Watts |
| Program Power Handling | 200 Watts |
|
Frequency
Response |
500Hz -
4.3kHz |
|
Sensitivity
(1W/1m) |
99.8dB |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
|
Max. Crossover Frequency |
4.3kHz |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 6.59" / 167.4mm |
| Bolt Circle Diameter | 6.06" / 153.9mm |
| Baffle Cutout Diameter | 5.69" / 144.5mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | 0.23" / 5.8mm |
| Overall Depth | 2.4" / 61mm |
| Net Weight | 2.2 lbs. / 1.0 kg. |
| Shipping Weight | 3.0 lbs. /1.3kg. |
|
MATERIALS |
|
| Voice Coil | Round Copper |
| Voice Coil Former | Kapton |
| Core Details | Non Vented |
| Basket | Pressed Steel |
| Cone | Paper |
| Surround | Cloth |
| Dustcap | Treated Paper |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 501 Hz |
|
Impedance
(Re) |
7.4 ohms |
| Coil Inductance (Le) | 0.49mH |
| Electromagnetic Q (Qes) |
1.83 |
| Mechanical Q (Qms) | 9.09 |
|
Total Q (Qts) |
1.53 |
| Compliance Equivalent Vol. (Vas) | .27 Liters/.01cu. ft. |
| Voice Coil Overhang (Xmax) | .1mm |
| BL Factor (BL) | 9.8 T-M |
| Surface Area of Cone (Sd) | .01397m2 |
|

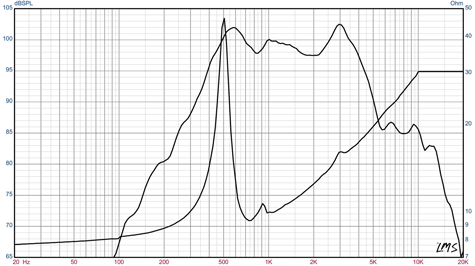

FREQUENCY RESPONSE |
|
|
|
|
