Tannoy SuperTweeter™ |
Tannoy SuperTweeter™ offers an increased immediacy, airiness & impact making music true to life |
|
|
|
TANNOY ST-50 |
|
Call 877-732-5374 for pricing & ordering |
|
| ST50 SuperTweeter™ are constructed from solid aluminium die-castings coated with a soft feel, non-reflecting finish. Not only are they designed to visually blend in with all types of speakers, but they also provide an instant acoustic upgrade that is unavailable in any other way. | |
|
|

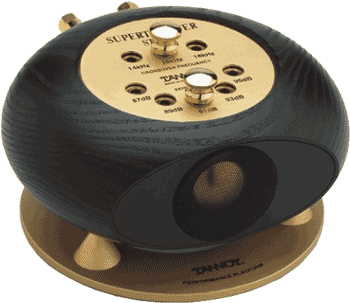

TANNOY ST-100 |
|
Black
Ash with 24 Karat Gold Trim Detail Call 877-732-5374 for pricing & ordering |
|
| ST100 SuperTweeter™ come in solid black ash and with the same Performance Platform™ as the ST200. This model is provided with specific crossover and frequency control settings suited to all types of speakers, regardless of manufacturer. In addition the ST100 is optimized for use with older Tannoy Dual Concentric models, many going back over 40 years to the original 15” Monitor Red derivatives. | |
|
|

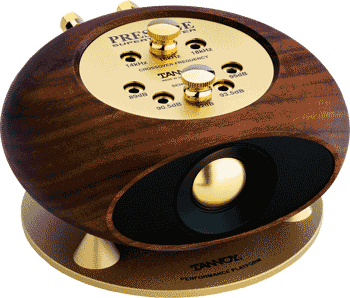

TANNOY ST-200 |
Oiled Solid Walnut with 24 Karat Gold Detail Call 877-732-5374 for pricing & ordering |
|
| ST200 SuperTweeter™ are available in solid oiled American Walnut and are exceptionally fine SuperTweeters with regards to adjustment optimization, appearance, style, construction and performance. The ST200 Prestige model is provided with a calibrated location gauge, to allow accurate front to back positioning for all Prestige loudspeaker designs past and present. | |
TANNOY SuperTweeter™ Technical Specifications |
ST-50 |
ST-100 |
ST-200 |
|
| PERFORMANCE | |||
| Recommended amplifier power | Up to 200 Watts | Up to 250 Watts | Up to 250 Watts |
| Continuous power handling | 110 Watts RMS | 135 Watts RMS | 135 Watts RMS (DIN IEC 268) |
| Peak output power | 450 Watts Peak | 550 Watts Peak | 550 Watts Peak |
| Maximum Sensitivity | 93dB (2.83v @ 1m) | 95dB (2.83v @ 1m) | 95dB (2.83v @ 1m) |
| Nominal impedance | 8 ohms | 8 ohms | 8 Ohms |
| Frequency response | To 54kHz, usable output (-18dB) to 100kHz | To 54kHz, usable output (-18dB) to 100kHz | To 54kHz, usable output (-18dB) to 100kHz |
| DRIVE UNITS | |||
| Driver Type | 25mm (1") 25 micron titanium dome, 24 Karat vapor deposited gold finish, with neodymium magnet | 25mm (1") 25 micron titanium dome, 24 carat vapor deposited gold finish with neodymium magnet | 25mm (1") 25 micron titanium dome, 24 carat vapor deposited gold finish with neodymium magnet |
| CROSSOVER | |||
| Frequency | 14, 16 or 18kHz adjustable | 18, 20, or 22kHz adjustable | 14kHz, 16kHz or 18kHz adjustable |
| Crossover Type | 3rd order high pass | 3rd order compensated high pass | 3rd order compensated high pass |
| Crossover Level | 85dB, 89dB, 93dB adjustable | 87dB, 89dB, 91dB, 93dB, 95dB adjustable | 89dB, 90.5dB, 92dB, 93.5dB, 95dB adjustable |
| CONSTRUCTION | |||
| Dimensions | 150mm (6in) diameter | 150mm (6in) diameter | 150mm (6in) diameter |
| Weight | 0.75kg | 6.5kg | 6.5kg |
| Weight | 1.65lbs | 14.3lbs | 14.3lbs |
| Finish | Black with gold anodized Performance Platform™ | Black Ash | Oiled solid walnut |
Additional Information |
| A SuperTweeter™ is a small high frequency drive unit, mounted in a special
casing, designed to sit on top of, and drawing its input signal from, existing
speakers. Tannoy SuperTweeter™ will transform any sound system, creating the effect of a quantum leap upgrade in the sound quality of speakers, electronic components and cables. All models are stand-alone units with vertical axis adjustment to ensure optimum combined acoustic output with the main speaker. Each has two sets of controls allowing both operating frequency and output level to be optimized for any type of speaker. SuperLink™ cables are signal links specifically designed to connect Tannoy SuperTweeters™ to any speaker input terminals where high-grade speaker cables, such as Van den Hul, are in use. Using pure silver conductors, high-grade PTFE insulation and gold plated connectors, they provide ultimate signal purity and definition at high sonic frequencies and output levels. |
