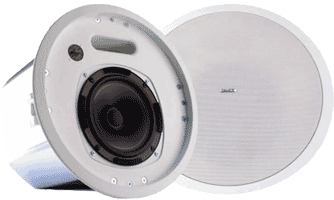

CMS60 Ceiling Monitor System |
High quality ceiling monitor based around a 6.5” point source transducer |
||
|---|---|---|
|
|
CMS60-ICT4 |
CMS60-ICT30 |
| Call 877-732-5374 for pricing & ordering | Call 877-732-5374 for pricing & ordering | |
Tannoy CMS60 ICT Specifications |
|
| Sensitivity 2.83 Volts @ 1m | 92dB (half space) |
| Impedance | 4Ω |
| Frequency Response ±3dB | 60Hz - 20kHz -10 55Hz |
| Power Handling | 60 Watt (average) 120 Watt (program) 240 Watt (peak) |
| Maximum SPL |
THP 15 Transformer 106dB (average) THP 60 Transformer 110dB (average) Low Impedance 116dB (average) 113dB (peak) |
| Driver Complement | 1 x 165mm (6.5”) ICT™ Point Source |
| Dispersion | 90° conical |
| Dimensions | Can
Height 194mm (7 5/8") Baffle Diameter 328mm (12 15/16") x 605mm (23 13/16") Baffle Diameter (23 13/16") rectangular |
| Enclosure | 12 liters, vented |
| Weight |
CMS60 ICT 3.9kg (8lbs 11oz) CMS60 ICT-30 4.4kg (9lbs 10oz) |
| Finish | White - paintable |
| Wattage Tap Selections | 30, 15, 7.5, 3.75 Watts |
|
|
APPLICATIONS |
|
| Boutiques | Business Music Systems |
| Retail outlets | Boardrooms & Offices |
| Houses of worship | Foreground Music & Paging Systems |
| Public address systems | Reception / Waiting Rooms |
| Airports | Hotels |
| Convention Centers | Lounges and Bars |
| High level music and speech reinforcement | Cruise ships |
