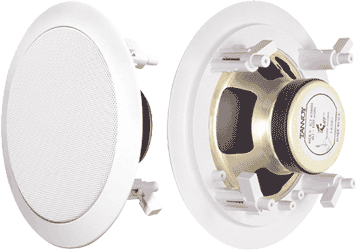

CMS6 ICTB Ceiling Monitor System |
High quality ceiling monitor based around a 6.5” point source transducer |
|
|---|---|
|
|
CMS6 ICTB-4 |
| Call 877-732-5374 for pricing & ordering | |
Tannoy hardware options ensures simple and effective installation. |
MR 60B |
| An optional Mud Ring can be used for additional support in sheet rock ceilings |
| Call 877-732-5374 for pricing & ordering |
THP 15 W |
| The CMS6 ICTB can be used in a distributed system using the THP 15 W transformer which mounts to the baffle during installation |
| Call 877-732-5374 for pricing & ordering |
CMS6 ICTB Specifications |
|
| Sensitivity 2.83 Volts @ 1m | 92dB (half space) |
| Impedance | 4Ω |
| Frequency Response ±3dB | 75Hz - 20kHz |
| Power Handling | 50 Watt (average) 100 Watt (program) 200 Watt (peak) |
| Maximum SPL |
THP 15 Transformer 100dB (average) Low Impedance 107dB (average) 113dB (peak) |
| Driver Complement | 1 x 165mm (6.5") ICT™ Point Source |
| Dispersion | 90° conical |
| Dimensions |
Mounting Depth 76mm (3") Baffle Diameter 204mm (8") Cutout Size 179mm (7 7/16") Mounting Panel Thickness 23mm (7/8") |
| Weight | CMS6 ICTB 1.1kg (2lbs 6oz) |
| Finish | White - paintable |
| Wattage Tap Selections | 15, 7.5, 3.75, 1.9 Watts |
|
|
APPLICATIONS |
|
| Boutiques | Business Music Systems |
| Retail outlets | Boardrooms & Offices |
| Houses of worship | Foreground Music & Paging Systems |
| Public address systems | Reception / Waiting Rooms |
| Airports | Hotels |
| Convention Centers | Lounges and Bars |
| High level music and speech reinforcement | Cruise ships |
