US Speaker - Eminence speakers - The Eminence Screamin Eagle is a 12" guitar speaker with tight bass and screamin mids and highs from the Eminence Patriot Series. The Eminence Screamin Eagle speaker is an excellent upgrade or replacement for guitar cabinets for that classic tone.

SPEAKER MODEL	SCREAMIN EAGLE
SPECIFICATIONS
Nominal Basket Diameter	12" / 305mm
Impedance	8 or 16 ohms
RMS Power Rating	75 Watts
Peak Power Rating	150 Watts

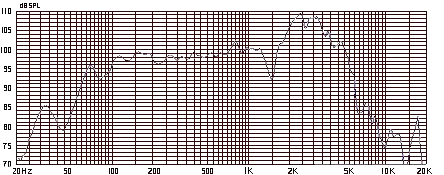

Usable Frequency Response	65Hz - 5.5kHz
Voice Coil Diameter	1.75" / 44.5mm
Sensitivity (1W/1m)	101dB
Magnet Weight	38 oz.
Shipping Weight	10lbs. /4.54kg.
MOUNTING INFORMATION
Overall Diameter	12.02" / 305.2mm
Bolt Circle Diameter	11.63" / 295.3mm
Baffle Cutout Diameter	10.97" / 278.6mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.25" / 6.4mm
Overall Depth	5.1" / 129.5mm
MATERIALS
Basket	Stamped Steel
Voice Coil	Copper
Coil Former Material	Kapton
Dust Cap	Zurette
Cone	Paper
Surround	Paper
Magnet	Ferrite
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	79Hz
Impedance (Re)	6.84 ohms
Coil Inductance (Le)	0.48mH
Electromagnetic Q (Qes)	0.60
Mechanical Q (Qms)	15.95
Total Q (Qts)	0.58
Compliance Equiv. Vol. (Vas)	51.5Liters / 1.8 cu. ft.
BL Product (BL)	13.1 T-M
Voice Coil Overhang (Xmax)	1.23mm
Surface Area of Cone (Sd)	.05195m2
