Genuine Eminence

- 12" GUITAR SPEAKER

THE PRIVATE JACK DELIVERS A CLASSIC BRITISH TONE THAT ROCKS!

Free UPS Ground Shipping in the U.S.

Private Jack-8  -  8 ohm version

Item Price: $94.99

Private Jack-16  -  16 ohm version

Item Price: $94.99

SPEAKER MODEL PRIVATE JACK

SPECIFICATIONS

Nominal Basket Diameter 12" / 305mm
Impedance 8 ohms
RMS Power Rating 50 Watts
Peak Power Rating 100 Watts

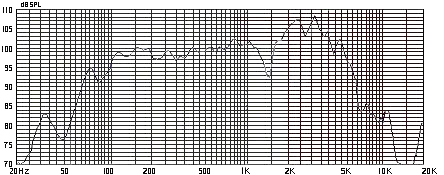

Usable Frequency Response 70Hz-5.5kHz
Voice Coil Diameter 1.75" / 44.5mm
Sensitivity (1W/1m) 101dB
Magnet Weight 38 oz.
Shipping Weight 10.0lbs. / 4.5 kg.

MOUNTING INFORMATION

Overall Diameter 12.02" / 305.2mm
Bolt Circle Diameter 11.63" / 295.3mm
Baffle Cutout Diameter 10.97" / 278.6mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.25" / 6.4mm
Overall Depth 5.0" / 129.5mm

MATERIALS

Basket Stamped Steel
Voice Coil Copper
Coil Former Material Paper
Dust Cap Zurette
Cone Paper
Surround Paper
Magnet Ferrite

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 96 Hz
Impedance (Re) 7.01 ohms
Coil Inductance (Le) 0.49mH
Electromagnetic Q (Qes) .072
Mechanical Q (Qms) 18.19
Total Q (Qts) .69
Compliance Equiv. Vol. (Vas) 33.7Liters / 1.2 cu. ft.
BL Product (BL) 13.5 T-M
Voice Coil Overhang (Xmax) 1.2mm
Surface Area of Cone (Sd) .05195m2
