EMINENCE PSD3006 - 2" PRO HIGH FREQ. DRIVER |
SMOOTH WARM SOUND W/ GOOD POWER HANDLING & HIGH EFFICIENCY! |
|
|
PSD3006-8 |
No Longer Available |
|
H.F. DRIVER
MODEL |
|
Specifications |
|
Throat Diameter |
2" |
Impedance |
8 ohms |
D.C. Resistance | 4.8 ohms |
AES
Power Rating |
115 Watts above 800Hz |
AES
Power Rating |
80 Watts above 500Hz |
Sensitivity (1W/1m) | 111.4dB SPL |
Frequency Response | 500Hz - 18kHz |
Recommended Crossover | 500Hz @ 12dB |
Resonance | 511Hz |
Voice Coil Diameter | 3.0" / 76.2mm |
Magnetic Assembly Weight | 80 oz.. |
Mounting Information |
|
Overall Diameter |
7.9" / 200.7mm |
Overall Depth | 3.1" / 78.7 |
Mounting | (4) 1/4-20 studs on 4" dia. centers |
Net Weight | 13.5 lb. / 6.14 kg. |
Materials |
|
Diaphragm | Titanium w/ Geodesic Design |
Voice Coil | Polyimide |
Input Connectors | Metal Push-Button Terminals |
Magnet | Ferrite |

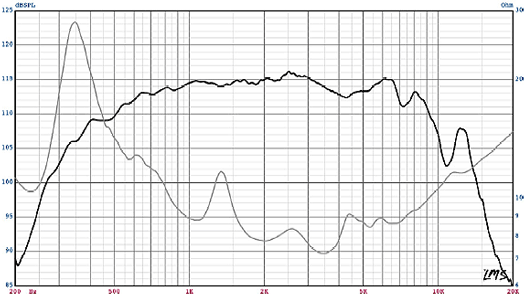

SPL vs. Frequency |
|
|
