LEGEND GB12 - LEAD GUITAR SPEAKER
|
|
|
LEGEND GB12 - LEAD GUITAR SPEAKER |
|
THE EMINENCE LEGEND GB128 BREAKS UP WHEN PUSHED WITH A CRUNCHY BRITISH TONE ! |
|
|
|
Legend GB12-8 |
|
Item Price: $119.99 Free UPS Ground Shipping in the U.S. |
|
|
SPEAKER MODEL |
LEGEND
GB12 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
50
Watts |
|

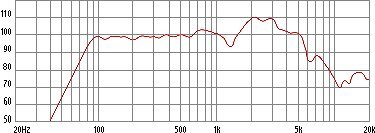

Usable
Frequency Response |
80Hz
- 5.1kHz |
|
Voice
Coil Diameter |
1.75"
/ 44.5mm |
|
Sensitivity
(1W/1m) |
101.4dB |
|
Magnet
Weight |
38
oz. |
| Net Weight | 8.1lbs. / 3.7kg. |
| Shipping Weight | 10.1lbs. / 4.6kg. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.02" / 305.2mm |
|
|
|
| Baffle Cutout Diameter | 10.97" / 278.6mm |
|
No.
Of Mounting Holes |
8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
|
Overall
Depth |
6.06" / 154m |
|
MATERIALS |
|
|
Basket |
Pressed Steel |
| Voice Coil | Polyamide-Imide Coated Copper |
| Dust Cap | Screened Cloth |
| Cone | Paper |
| Surround | Paper Cone Edge |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 86 Hz |
|
Impedance
(Re) |
6.37 ohms |
| Coil Inductance (Le) | 0.64mH |
| Electromagnetic Q (Qes) | .67 |
| Mechanical Q (Qms) | 19.54 |
| Total Q (Qts) | .65 |
| Compliance Equiv. Vol. (Vas) | 43.9 Liters / 1.55cu.ft. |
| Voice Coil Overhang (Xmax) | .8mm |
| Surface Area of Cone (Sd) | .05067m2 |
| BL Product (BL) | 12 T-M |
| Displacement Volume (Vd) | 40 cc |
| Diaphragm Mass Inc. Airload (Mms) | 28 grams |
| Mechanical Compliance (Cms) | .12mm/N |
| Mechanical Resistance (RMS) | .78N*sec/M |
| Efficiency Bandwidth Product (EBP) | 128 |
| Impedance at Resonance (Zmax) | 192 ohms |
|
|
|
