Genuine Eminence
LEGEND B15-8 - BASS GUITAR SPEAKER
|
|
|
LEGEND B15-8 - BASS GUITAR SPEAKER |
|
THIS 15" BASS SPEAKER PERFORMS WELL W/ A STRONG BOTTOM END! |
|
|
|
No Longer Available Item Price: $129.99 Replaced by the Legend CB15 |
| SPEAKER MODEL |
L |
|
Specifications |
|
|
Nominal
Basket Diameter |
15"
/ 381mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
300
Watts |
|
Usable
Frequency Response |
48Hz
- 4kHz |
|
Voice
Coil Diameter |
3"
/ 76.2mm |
|
Sensitivity
(1W/1m) |
100dB |
|
Magnet
Weight |
95
oz. |
|
Mounting Information |
|
| Overall Diameter | 15.16" / 384.9mm |
| Bolt Circle Diameter | 14.6" / 370mm |
| Baffle Cutout Diameter | 14.2" / 359mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter |
0.275" / 7mm |
|
Overall
Depth |
6.2" / 155mm |
| Shipping Weight | 21.6 lbs. / 9.8kg. |
|
Materials |
|
| Basket | Pressed Steel |
| Voice Coil | Polyamide-Imide Coated Aluminum |
| Dust Cap | Solid Composition Paper |
| Cone | Paper |
| Surround | Cloth Cone Edge |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 40 Hz |
| Impedance (Re) | 6.55 ohms |
| Coil Inductance (Le) | 0.51mH |
| Electromagnetic Q (Qes) | .47 |
| Mechanical Q (Qms) | 11.44 |
| Total Q (Qts) | .45 |
|
Compliance Equiv. Vol. (Vas) |
215.1 Liters / 7.6cu.ft. |
| Voice Coil Overhang (Xmax) |
3.0mm |
| Surface Area Of Cone (Sd) | .08563m2 |
| BL Product (BL) | 16.2 T-M |
| Displacement Volume (Vd) | 27 cc |
| Diaphragm Mass Inc. Airload (Mms) | 74 grams |
| Mechanical Compliance (Cms) | .21mm/N |
| Mechanical Resistance (RMS) | 1.65N*sec/M |
| Efficiency Bandwidth Product (EBP) | 86 |
| Impedance at Resonance (Zmax) | 166 ohms |
|

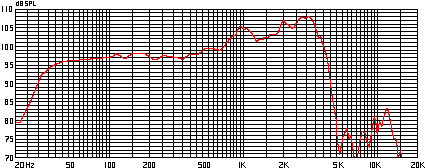

LEGEND B15 RESPONSE CURVE |
|
|
|
|
