LEGEND 121 - LEAD GUITAR SPEAKER
|
|
|
LEGEND 121 - LEAD GUITAR SPEAKER |
|
THE EMINCNE LEGEND 121 HAS LOUD & CLEAN FULL BODIED SOUND W/ HIGH POWER HANDLING |
|
|
|
Item Price: $119.99 Free UPS Ground Shipping in the U.S. |
|
SPEA |
Legend 121 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 305mm |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
150
Watts |
|
Usable
Frequency Response |
80Hz
- 4.2kHz |
|
Voice
Coil Diameter |
2"
/ 50.8mm |
|
Sensitivity
(1W/1m) |
98.8dB |
|
Magnet
Weight |
38
oz. |
| Net Weight | 8.4lbs. / 3.8 kg. |
| Shipping Weight | 10.6lbs. / 4.8 kg. |
|
MOUNTING INFORMATION |
|
|
|
12.03" / 305.2mm |
| Bolt Circle Diameter | 11.59" / 294.3mm |
| Baffle Cutout Diameter | 10.95" / 278.1mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 4.5" / 114mm |
|
MATERIALS |
|
|
Basket |
Pressed Steel |
| Voice Coil | Copper |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper Cone Edge |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
100 Hz |
| Impedance (Re) |
6.95 ohms |
| Coil Inductance (Le) | 0.69mH |
| Electromagnetic Q (Qes) | .95 |
| Mechanical Q (Qms) |
15.51 |
| Total Q (Qts) | .89 |
| Compliance Equiv. Vol. (Vas) | 31.2 Liters / 1.1cu.ft. |
| Voice Coil Overhang (Xmax) | 0.8mm |
| Surface Area of Cone (Sd) | .08237m2 |
| BL Product (BL) | 11.6 T-M |
| Displacement Volume (Vd) | 40 cc |
| Diaphragm Mass Inc. Airload (Mms) | 29 grams |
| Mechanical Compliance (Cms) | .09mm/N |
| Mechanical Resistance (RMS) | 1.19N*sec/M |
| Efficiency Bandwidth Product (EBP) | 105 |
| Impedance at Resonance (Zmax) | 121 ohms |
|

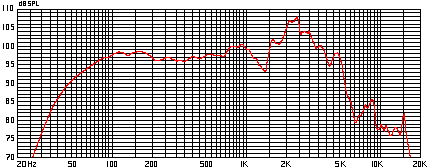

LEGEND 121 RESPONSE CURVE |
|
 |
|
