LEGEND B102 - BASS GUITAR SPEAKER
|
|
|
LEGEND B102 - BASS GUITAR SPEAKER |
|
THE WHIZZER CONE ELIMINATES THE NEED FOR A TWEETER! |
|
|
|
 |
|
|
|
|
SPEAKER
MODEL |
LEGEND
B102 |
|
SPECIFICATIONS |
|
| Nominal Basket Diameter | 10.3" / 262mm |
| Impedance | 8 ohms |
|
RMS
Power Rating |
200 Watts |

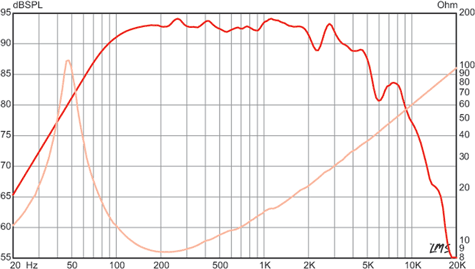

| Usable Frequency Response | 40Hz - 9kHz |
| Voice Coil Diameter | 2" / 50.8mm |
| Sensitivity (1W/1m) | 97dB |
| Magnet Weight | 59 oz. |
| Shipping Weight | 12lbs. / 5.5 kg. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.25" / 260.4mm |
| Bolt Circle Diameter | 9.62" / 244.3mm |
| Baffle Cutout Diameter | 9.12" / 231.6mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.275" / 7mm |
| Overall Depth | 4.33" / 110mm |
|
MATERIALS |
|
| Basket | Die-Cast Aluminum |
| Voice Coil | Polyamide-Imide Coated Copper |
| Dust Cap | Solid Composition Paper (inc. whizzer cone) |
| Cone | Paper |
| Surround | Cloth Cone Edge |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 45 Hz |
| Impedance (Re) | 5.66 ohms |
| Coil Inductance (Le) | 0.67mH |
| Electromagnetic Q (Qes) | .24 |
| Mechanical Q (Qms) | 7.07 |
| Total Q (Qts) | .23 |
| Compliance Equivalent Vol. (Vas) | 73.5 Liters / 2.59cu.ft |
| Voice Coil Overhang (Xmax) | 3.0mm |
| Surface Area Of Cone (Sd) | .03449m2 |
| BL Product (BL) | 13.8 T-M |
| Displacement Volume (Vd) | 104 cc |
| Diaphragm Mass Inc. Airload (Mms) | 28 grams |
| Mechanical Compliance (Cms) | .044mm/N |
| Mechanical Resistance (RMS) | 1.13N*sec/M |
| Efficiency Bandwidth Product (EBP) | 190 |
 |
|
