Genuine Eminence
EMINENCE IMPERO-15C - 15" 4 OHM WOOFER
|
|
|
EMINENCE IMPERO-15C - 15" 4 OHM WOOFER |
|
THE EMINENCE IMPERO-15C 15" SPEAKER HANDLES EXTREME POWER OF 1,200 WATTS RMS & 2,400 WATTS PROGRAM & HAS A WATER RESISTANT CONE! |
|
|
|
No Longer Available |
|
WOOFER
MODEL |
IMPERO-15C |
|
SPECIFICATIONS |
|
| Nominal
Basket Diameter |
15"
/ 381mm |
| Impedance |
4
ohms |
| RMS
Power Rating |
1,200
Watts |
| Program Power Handling | 2,400 Watts |
| Frequency
Response |
50Hz - 2kHz |
| Sensitivity
(1W/1m) |
93.5dB |
| Voice
Coil Diameter |
4"
/ 101.6mm |
| Rec. Enclosure Volume(Vented) | 1.9-4.2cu. ft./53.8-118.9 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 15.22" / 386.6mm |
| Bolt Circle Diameter | 14.56" / 369.9mm |
| Baffle Cutout Diameter | 13.99" / 355.35mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7.23mm |
| Overall Depth | 6.56" / 166.62mm |
| Magnet Weight | 109 oz. |
| Net Weight | 24.8 lbs. / 11.2kg. |
| Shipping Weight | 27.5 lbs. / 12.3kg. |
|
MATERIALS |
|
| Basket | Die-Cast Aluminum |
| Cone | Water Resistant Treated Paper |
| Voice Coil | Copper |
| Former | Fiberglass |
| Core | Bumped & Vented Extended Core |
| Dust Cap | Water Resistant Treated Paper |
| Surround | Treated Cloth |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 40.27 Hz |
| Impedance (Re) | 3.11 ohms |
| Coil Inductance (Le) | 1.08mH |
| Electromagnetic Q (Qes) | .34 |
| Mechanical Q (Qms) | 10.95 |
| Total Q (Qts) | .32 |
| Compliance Equivalent Vol. (Vas) | 122.15 Liters/4.31cu. ft. |
| Voice Coil Overhang (Xmax) | 7.41mm |
| BL Factor (BL) | 17.4 T-M |
| Surface Area of Cone (Sd) | .08563 m2 |
|

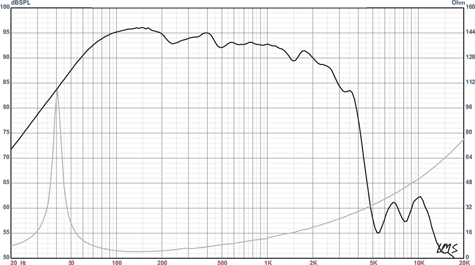

FREQUENCY RESPONSE CURVE |
|
|
|
|
