FAITAL PRO FD371 - SUPERTWEETER

THE FAITAL PRO FD371 HANDLES A POWERFUL 35 WATTS RMS @ 2.6KHZ & 70 WATTS PROGRAM POWER @ 2.5KHZ
ANNULAR PHASE PLUG & KETONE POLYMER DIAPHRAGM
SUPER SMOOTH SOUND THANKS TO ITS' KETONE POLYMER DIAPHRAGM
EXTREMELY LOW DISTORTION
VERSATILE ENOUGH FOR HI-END HOME THEATER SYSTEMS & PROFESSIONAL P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.
Machined From A Solid Block Of Aluminum!

KETONE POLYMER DIAPHRAGM DELIVERS VERY SMOOTH NATURAL HIGHS WITH LOW DISTORTION & WEIGHS ONLY 2.69 LBS!
	FAITAL PRO FD371
	8 Ohms Item Price: $221.95
RK-FD371-8DIA - $73.99 8 ohm diaphragm

H.F. DRIVER MODEL - FD371
Specifications
Impedance	8 ohms
D.C. Resistance	5.5 ohms
Sensitivity (1W/1m)	107dB SPL
AES Power Handling	35 Watts
Program Power Handling	70 Watts
Frequency Response	2.6kHz - 20kHz
Recommended Crossover	2.6 kHz @12 dB/oct.
Dispersion	40°Conical
Voice Coil Diameter	1.46" / 37mm
Winding Depth	0.08" / 2.1mm
Magnetic Gap Depth	0.1" / 2.6mm
Flux Density	1.5T
Phase Plug	Annular
Mounting Information
Overall Diameter	4.53" / 115.2mm
Overall Height	4.01" / 102mm
Overall Width	4.01" / 102mm
Overall Depth	3.11" / 79mm
Baffle Cutout Dimensions	3.66" / 93mm
Bolt Circle Diameter	4.21" / 107mm
Flange Thickness	.22" / 5.5mm
Net Weight	2.8 lb. / 1.27 kg.
Shipping Weight	2.9 lb. / 1.3 kg.
Materials
Diaphragm	Ketone Polymer
Voice Coil	Aluminum
Voice Coil Former	Kapton
Magnet	Ferrite

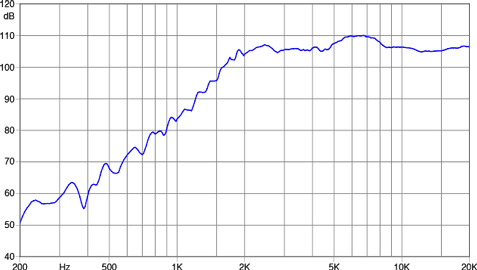

Frequency Response

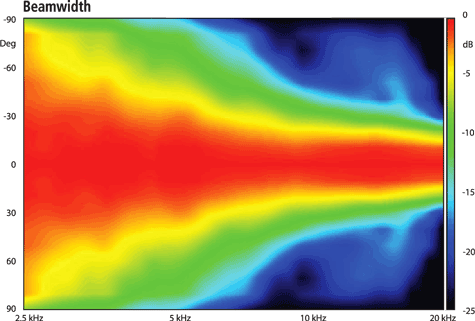

Beamwidth

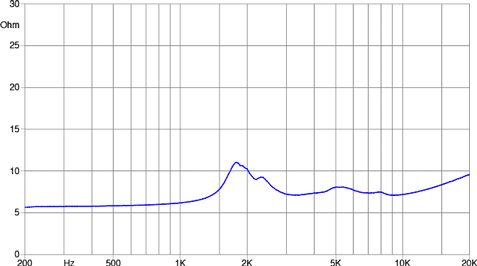

Impedance Curve

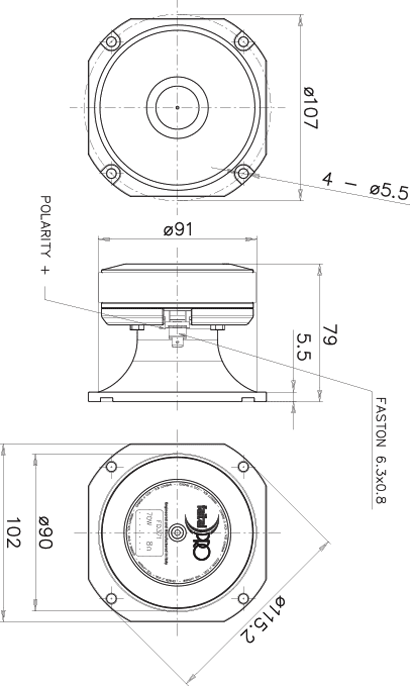

Dimensional Drawing
