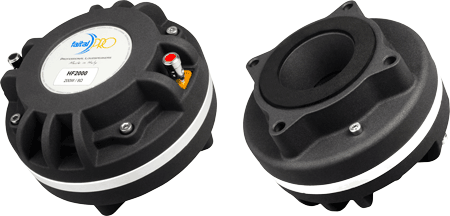

FAITAL PRO HF2000 - 2" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF2000 - 2" PRO NEO H.F. DRIVER |
|
EXTENDED MIDRANGE AND NICE HIGHS THAT IS SMOOTH SOUNDING W/ VERY LOW DISTORTION & WEIGHS ONLY 6.1LBS! |
|
|
|
FAITAL PRO HF2000 |
|
8 Ohms
Item Price: $576.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Sensitivity
(1W/1m) |
109dB SPL |
| AES Power Handling | 100 Watts |
| Program Power Handling | 200 Watts |
|
Frequency
Response |
500Hz
- 18kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.91"
/ 74mm |
| Winding Depth | 0.09" / 2.35mm |
| Magnetic Gap Depth | 0.13" / 3.2mm |
| Flux Density | 1.95T |
| Phase Plug | Annular |
|
Mounting Information |
|
| Overall Diameter |
5.14" /
130.5mm |
|
Overall
Depth |
3.29" / 83.5mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
6.1 lb. / 2.75 kg. |
| Shipping Weight | 6.4 lb. / 2.9 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

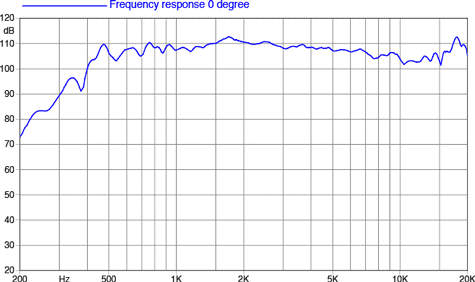

| Freq. Response & Distortion Curve - (Mounted On A 2" 90° x 40° Horn) | |
 |
|

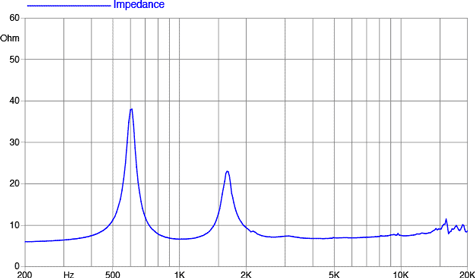

| Impedance Curve | |
 |
|

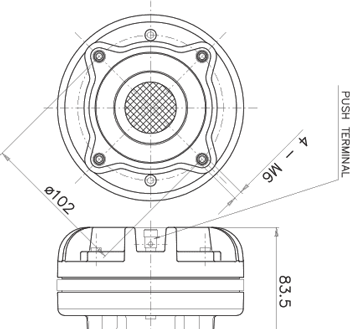

| Dimensional Drawing | |
 |
|
