• THE FAITAL PRO HF148 1.4" HF DRIVER HANDLES A POWERFUL 100 WATTS AES @ 900HZ  & 200 WATTS PROGRAM POWER @ 900HZ
• FEATURES A TITANIUM DIAPHRAGM & A LIGHTWEIGHT NEODYMIUM MAGNET SYSTEM THAT WEIGHS 5.1LBS.
• STRONG PRECISE MIDRANGE AND SMOOTH HIGHS WITH LOW DISTORTION & WIDE FREQUENCY RANGE FROM 500HZ UP TO 18KHZ
• ONLY 2.17" DEEP & 4.92" DIAMETER
• DESIGNED FOR HIGH QUALITY PROFESSIONAL P.A. SYSTEMS, SOUND REINFORCEMENT, ETC.
• AVAILABLE IN 8 & 16 OHMS

H.F. DRIVER MODEL  - HF148
Specifications
Throat Diameter	1.4" / 35.6mm
Impedance	8 or 16 ohms
Sensitivity (1W/1m)	109dB SPL
Impedance	8 Ohms
AES Power Handling	100 Watts @ 900Hz & 50 Watts @ 650Hz
Program Power Handling	200 Watts @ 900Hz & 100 Watts @ 650Hz
Frequency Response	500Hz - 18kHz
Recommended Crossover	900Hz @12 dB/oct.
Voice Coil Diameter	2.91" / 74mm
Winding Depth	0.09" / 2.35mm
Magnetic Gap Depth	0.13" / 3.2mm
Flux Density	1.75T
Mounting Information
Overall Diameter	4.92" / 125mm
Overall Depth	2.17" / 55mm
Mounting	(4) M6 threaded holes 90° apart on 4" diameter
Net Weight	5.1 lb. / 2.32 kg.
Shipping Weight	5.7 lb. / 2.6 kg.
Materials
Diaphragm	Titanium
Voice Coil	Aluminum
Voice Coil Former	Kapton
Diaphragm Shape	Dome
Phase Plug Design	Annular
Magnet	Neodymium

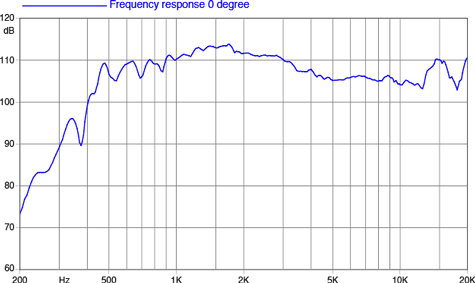

Freq. Response & Distortion Curve

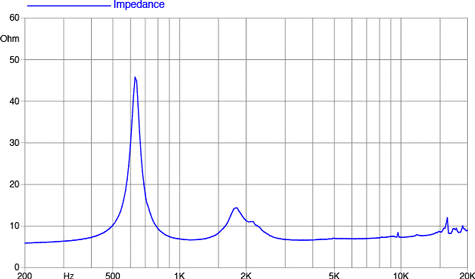

Impedance Curve
Dimensional Drawing
