FAITAL PRO HF144 - 1.4" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF144 - 1.4" PRO NEO H.F. DRIVER |
|
KETONE POLYMER DIAPHRAGM DELIVERS A VERY SMOOTH SOUND W/ VERY LOW DISTORTION & WEIGHS UNDER 5.0LBS! |
|
|
|
FAITAL PRO HF144 |
|
8 Ohms
Item Price: $304.95 |
|
|
16 Ohms
Item Price: $304.95 |
|
|
RK-HF144/146/204/206-8DIA
$173.99
|
|
RK-HF144/146/204/206-16DIA
$173.99
16 ohm diaphragm |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Sensitivity
(1W/1m) |
110dB SPL |
| AES Power Handling | 80 Watts |
| Program Power Handling | 160 Watts |
|
Frequency
Response |
700Hz
- 20kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.56"
/ 65mm |
| Winding Depth | 0.12" / 3mm |
| Magnetic Gap Depth | 0.17" / 4.2mm |
| Flux Density | 1.7T |
|
Mounting Information |
|
| Overall Diameter |
4.84" /
123mm |
|
Overall
Depth |
2.5" / 63.5mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
4.62 lb. / 2.1 kg. |
| Shipping Weight | 5.73 lb. / 2.6 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
| Freq. Response & Distortion Curve - (Mounted On A 2" 90° x 40° Horn) | |
 |
|

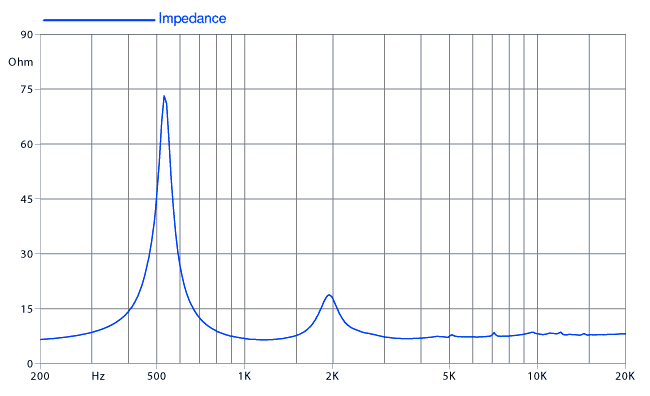

| Impedance Curve | |
 |
|

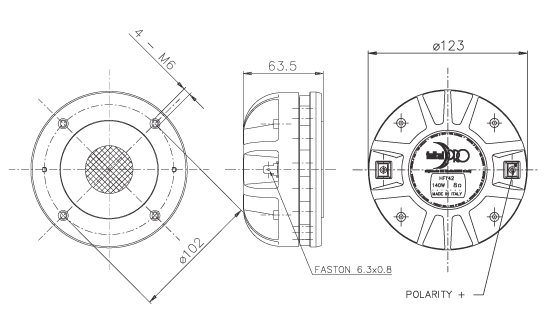

| Dimensional Drawing | |
 |
|
