FAITAL PRO HF140 - 1.4" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF140 - 1.4" PRO NEO H.F. DRIVER |
|
SMOOTH SOUNDING W/ VERY LOW DISTORTION & WEIGHS UNDER 3LBS! |
|
|
|
FAITAL PRO HF140 |
|
8 Ohms
Item Price: $374.95 |
|
|
16 Ohms
Item Price: $374.95 |
|
|
RK-HF14AT/20AT/140/200-8DIA
$210.95
|
|
RK-HF14AT/20AT/140/200-8DIA-16DIA $210.95
16 ohm diaphragm |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
| Impedance | 8 or 16 ohms |
| Sensitivity (1W/1m) | 109dB SPL |
| AES Power Handling | 80 Watts |
| Program Power Handling | 160 Watts |
|
Frequency
Response |
500Hz
- 20kHz |
| Recommended Crossover | 900Hz @12 dB/oct. |
| Voice Coil Diameter |
2.95"
/ 75mm |
| Winding Depth | 0.1" / 2.45mm |
| Magnetic Gap Depth | 0.11" / 2.8mm |
| Flux Density | 1.8T |
|
Mounting Information |
|
| Overall Diameter |
5.14" /
130.5mm |
|
Overall
Depth |
2.44" / 62mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter |
|
Net
Weight |
6.4 lb. / 2.9 kg. |
| Shipping Weight | 6.83 lb. / 3.1 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

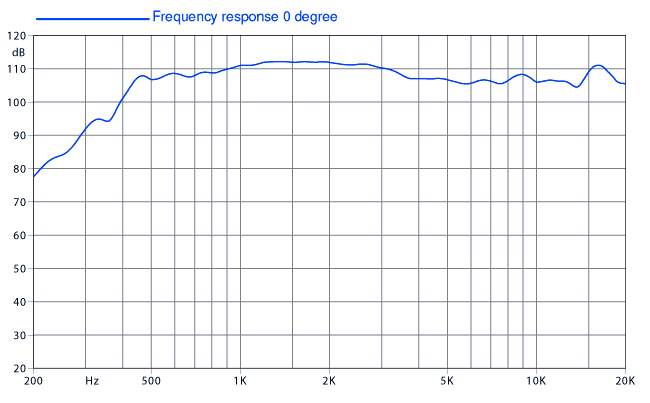

| Freq. Response & Distortion Curve - (Mounted On A 2" 90° x 40° Horn) | |
 |
|

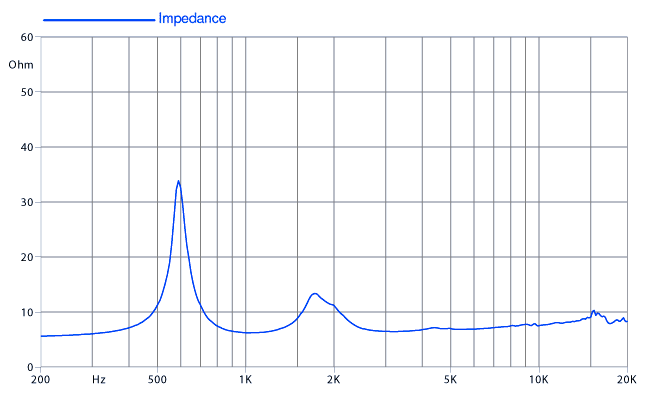

| Impedance Curve | |
 |
|

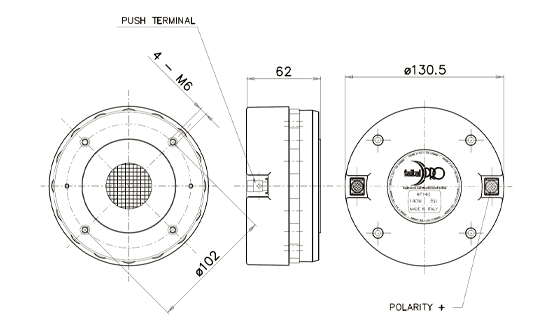

| Dimensional Drawing | |
 |
|
