FAITAL PRO HF10TX - 1" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF10TX - 1" PRO NEO H.F. DRIVER |
|
SMOOTH SOUNDING W/ VERY LOW DISTORTION & WEIGHS UNDER 3LBS! |
|
|
|
FAITAL PRO HF10TX |
|
Item Price: $165.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Sensitivity
(1W/1m) |
109dB SPL |
| AES Power Handling | 60 Watts |
| Program Power Handling | 120 Watts |
|
Frequency
Response |
800Hz
- 20kHz |
| Recommended Crossover | 1.5 kHz @12 dB/oct. |
| Voice Coil Diameter |
1.73"
/ 44mm |
| Winding Depth | 0.09" / 2.3mm |
| Magnetic Gap Depth | 0.12" / 3mm |
| Flux Density | 1.9T |
|
Mounting Information |
|
| Overall Diameter |
3.4" /
87mm |
|
Overall
Depth |
2.2" / 56mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
|
Net
Weight |
2.43 lb. / 1.1 kg. |
| Shipping Weight | 2.6 lb. / 1.18 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

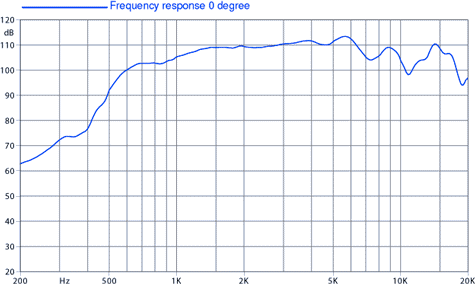

| Freq. Response & Distortion Curve - (Mounted On A LTH102 Horn) | |
 |
|

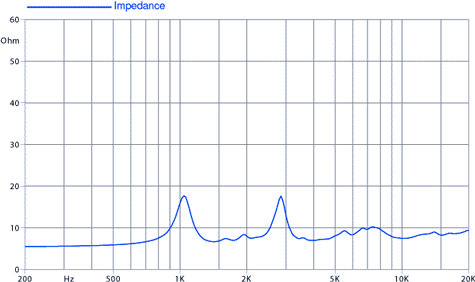

| Impedance Curve | |
 |
|
