FAITAL PRO HF10AT - 1" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF10AT - 1" PRO NEO H.F. DRIVER |
|
TITANIUM DIAPHRAGM DELIVERS NICE CRISP HIGHS WITH STRONG MIDS, LOW DISTORTION & WEIGHS ONLY 3.09 LBS! |
|
|
|
FAITAL PRO HF10AT |
|
Item Price: $177.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Sensitivity
(1W/1m) |
109dB SPL |
| AES Power Handling | 60 Watts |
| Program Power Handling | 120 Watts |
|
Frequency
Response |
1kHz
- 20kHz |
| Recommended Crossover | 1.3 kHz @12 dB/oct. |
| Voice Coil Diameter |
1.73"
/ 44mm |
| Winding Depth | 0.1" / 2.45mm |
| Magnetic Gap Depth | 0.11" / 2.75mm |
| Flux Density | 1.9T |
|
Mounting Information |
|
| Overall Diameter |
4.02" /
102mm |
|
Overall
Depth |
2.13" / 54mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
| (3) M6 threaded holes 120° apart on 3" diameter | |
|
Net
Weight |
3.09 lb. / 1.4 kg. |
| Shipping Weight | 3.26 lb. / 1.48 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

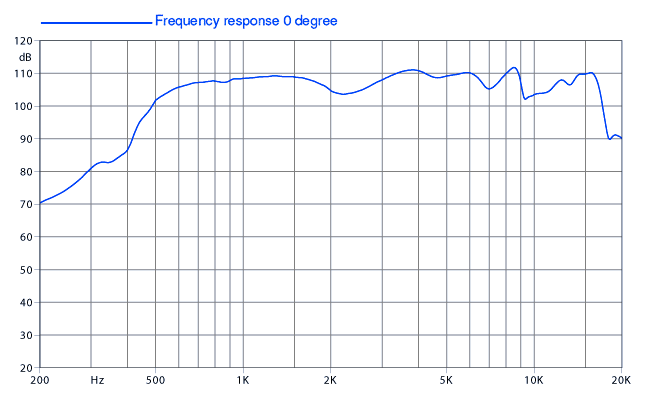

| Freq. Response & Distortion Curve - (Mounted On A LTH102 Horn) | |
 |
|

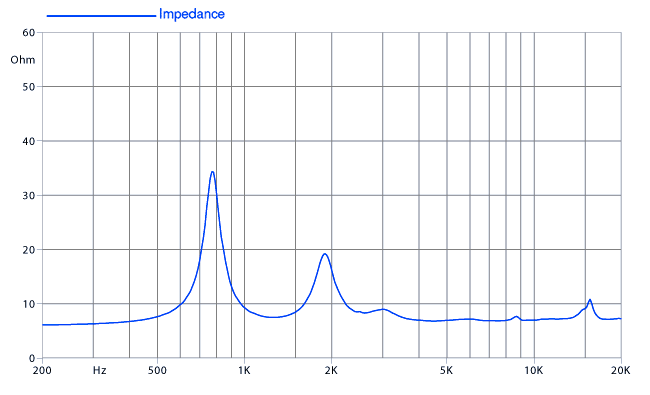

| Impedance Curve | |
 |
|
| Dimensional Drawing | |
 |
|
