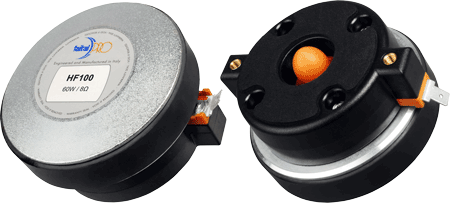

FAITAL PRO HF100 - 1" PRO NEO H.F. DRIVER
|
|
|
FAITAL PRO HF100 - 1" PRO NEO H.F. DRIVER |
|
POLYMER DIAPHRAGM ALLOWS FOR A SMOOTH RESPONSE & IT WEIGHS ONLY 1.26LBS! |
|
|
|
FAITAL PRO HF100 |
|
Item Price: $45.99 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1" |
|
Sensitivity
(1W/1m) |
106dB SPL |
| AES Power Handling | 30 Watts |
| Program Power Handling | 60 Watts |
|
Frequency
Response |
1.5kHz
- 20kHz |
| Recommended Crossover | 2.6 kHz @12 dB/oct. |
| Voice Coil Diameter |
1.02"
/ 26mm |
| Winding Depth | 0.07" / 1.7mm |
| Magnetic Gap Depth | 0.08" / 2mm |
| Flux Density | 1.4T |
|
Mounting Information |
|
| Overall Diameter |
3.39" /
86mm |
|
Overall
Depth |
2.13" / 54mm |
| Mounting | (2) M6 threaded holes 180° apart on 3" diameter |
|
Net
Weight |
1.26 lb. / .57 kg. |
| Shipping Weight | 1.43 lb. / .65 kg. |
|
Materials |
|
| Diaphragm | Ketone Polymer |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |

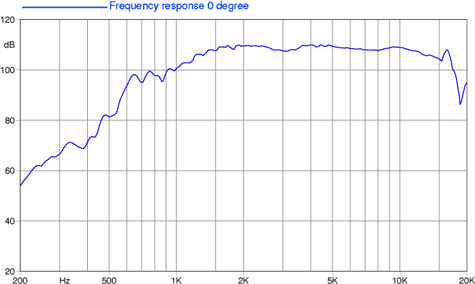

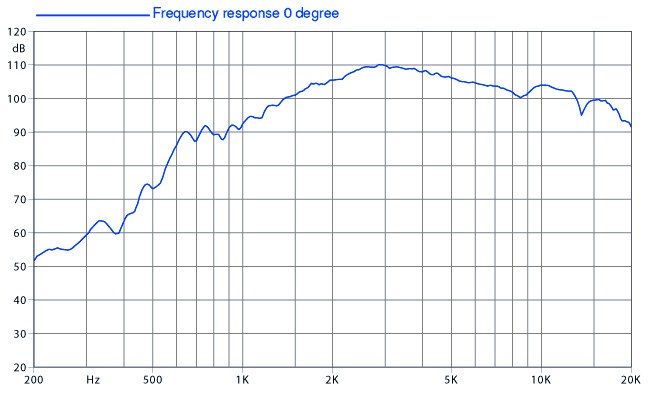

| Freq. Response & Distortion Curve - (Mounted On A LTH102 Horn) | |
 |
|

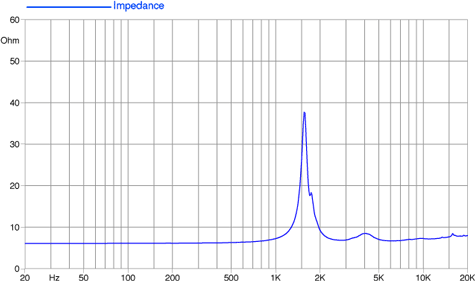

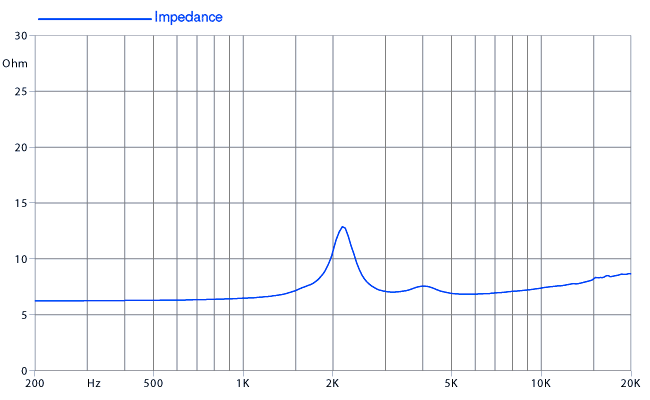

| Impedance Curve | |
 |
|

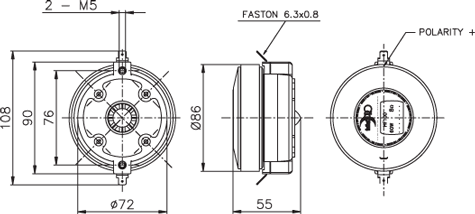

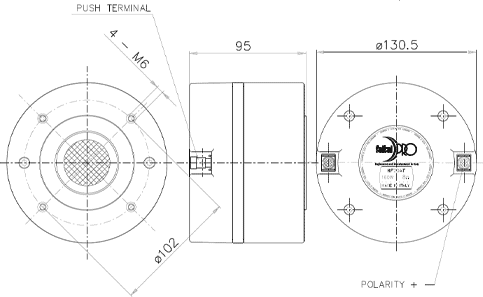

| Dimensional Drawing | |
 |
|
