• THE TITO FUJITA SIGNATURE TF-1250 IS A 12" GUITAR SPEAKER FROM THE 'SIGNATURE SERIES' GUITAR SPEAKER LINEUP
• POWER HANDLING OF 50 WATTS RMS & 100 WATTS PROGRAM
• HIGH SENSITIVITY OF 101.3 DB SPL
• CHIMEY HIGHS YET SMOOTH SOUNDING, CLEAR ARTICULATE MIDS & PUNCHY LOWS
• NICE BALANCED TONE ACROSS ITS' ENTIRE FREQUENCY RANGE
• WORKS REALLY WELL IN OPEN BACK GUITAR CABINETS
• MADE BY HAND IN THE USA
• AVAILABLE IN 8 OHMS ONLY

THE TF-1250 TITO FUJITA 12" GUITAR SPEAKER HAS A NICE TONE WITH CHIMEY YET SMOOTH HIGHS!
	No Longer Available
SPEAKER MODEL	TF-1250
SPECIFICATIONS
Nominal Basket Diameter	12" / 305mm
Impedance	8 ohms
RMS Power Rating	50 Watts
Peak Power Rating	100 Watts
Usable Frequency Response	80Hz-4.4kHz
Voice Coil Diameter	1.5" / 38mm
Sensitivity (1W/1m)	101.3dB
Magnet Weight	30 oz.
MOUNTING INFORMATION
Overall Diameter	12.17" / 309.1mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter	11.13" / 282.7mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.24" / 6.1mm
Overall Depth	4.97" / 126.2mm
Shipping Weight	6.6lbs. / 2.99 kg.
Shipping Weight	8.6lbs. / 3.9 kg.
MATERIALS
Basket	Pressed Steel
Voice Coil	Copper
Coil Former Material	Polyimide
Dust Cap	Paper
Cone	Full Molded Paper
Surround	Paper
Core	Non Vented
Magnet	Ferrite
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	95 Hz
Impedance (Re)	7.23 ohms
Total Q (Qts)	.88
Surface Area of Cone (Sd)	.05195m2

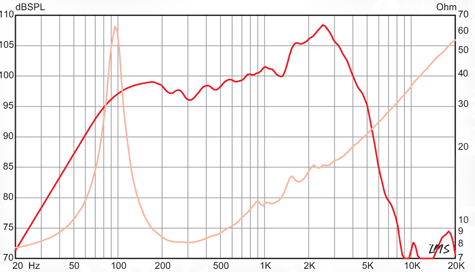

FREQUENCY RESPONSE GRAPH
