EMINENCE DELTA-15LF-4 -  4 OHM 15" WOOFER

THE EMINENCE DELTA-15LF-4 HAS MELLOWER MIDS & TIGHT STRONG BASS WITH AN EXTENDED XMAX OF 6.0MM!

Eminence Delta-15LF-4Eminence Delta-15LF-4

Purchase an Eminence Delta-15LFA Woofer

Item Price: $159.99

Free UPS Ground Shipping in the U.S.

WOOFER MODEL

DELTA-15LF-4

SPECIFICATIONS

Nominal Basket Diameter

15" / 381mm

Impedance

4 ohms

RMS Power Rating

600 Watts

Program Power Handling 1,200 Watts

Frequency Response

40Hz - 2.2kHz

Sensitivity (1W/1m)

95dB

Voice Coil Diameter

2.5" / 64mm

Max. Crossover Frequency

2.2kHz

Sealed Enclosure Size 52.95 - 97.69 Liters / 1.87 - 3.45 cu. ft.
Vented Enclosure Size 75.04 - 154.33 Liters / 2.65 - 5.45 cu. ft.

MOUNTING INFORMATION

Overall Diameter 15.15" / 384.8mm
Bolt Circle Diameter 14.562" / 369.9mm
Baffle Cutout Diameter 13.87" / 352.3mm
No. Of Mounting Holes 8
Mounting Hole Diameter 0.275" / 7mm
Overall Depth 6.3" / 160mm

Magnet Weight

56 oz.

Net Weight 12.8 lbs. / 5.81 kg.
Shipping Weight 14.8 lbs. / 6.71kg.

THIELE-SMALL PARAMETERS

Resonant Frequency (fs) 40 Hz
Impedance (Re) 3.37 ohms
Coil Inductance (Le) .76mH
Electromagnetic Q (Qes)

.53

Mechanical Q (Qms) 6.22
Total Q (Qts) .49
Compliance Equiv. Vol. (Vas) 253.93 Liters/8.97cu. ft.
Voice Coil Overhang (Xmax) 6.0mm
Diaphragm Mass (Mms) 66 Grams
BL Factor (BL) 10.32 T-M
Surface Area of Cone (Sd) .0873m2

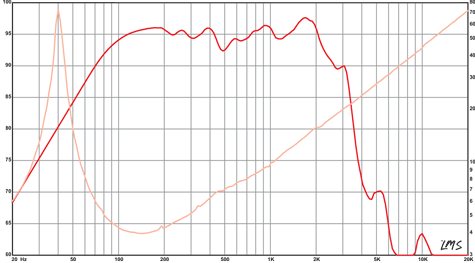

DELTA-15LF-4  FREQUENCY RESPONSE CURVE

Eminence Delta-15LF-4 Frequency Response
