SPEAKER
MODEL |
DELTA DEMON
|
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10"
/ 256mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
100
Watts |
|
Peak
Power Rating |
200 Watts |
|

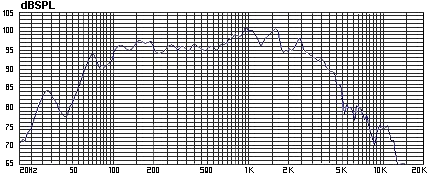

Usable
Frequency Response |
60Hz
- 4.0kHz |
|
Voice
Coil Diameter |
1.5"
/ 38.1mm |
|
Sensitivity
(1W/1m) |
96dB |
|
Magnet
Weight |
30
oz. |
| Shipping Weight | 9.0lbs. / 4.1 kg. |
|
MOUNTING INFORMATION |
|
|
|
10.085" / 256.2mm |
| Bolt Circle Diameter |
|
| Baffle Cutout Diameter | 9.045" / 229.7mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 3.8" / 96.5mm |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Kapton |
| Dust Cap | Paper |
|
Cone |
Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 76Hz |
| Impedance (Re) | 6.9 ohms |
| Coil Inductance (Le) | 0.66mH |
| Electromagnetic Q (Qes) | 0.53 |
| Mechanical Q (Qms) | 15.06 |
| Total Q (Qts) | .51 |
| Compliance Equiv. Vol. (Vas) | 41.1Liters / 1.5 cu. ft. |
| BL Product (BL) | 11.3 T-M |
| Voice Coil Overhang (Xmax) | 2.37mm |
| Surface area of Cone (Sd) | .03661m2 |
|
|
|
