Eminence Canis Major hemp cone alnico magnet speakers - The Eminence Canis Major is a 12 inch guitar speaker with a hemp cone and an alnico magnet from the Eminence Patriot Series that is clean sounding. The Eminence Canis Major cobinstion hemp cone and alnico speaker is an excellent upgrade or replacement for guitar cabinets for blues, country, classical.

SPEAKER MODEL	CANIS MAJOR
SPECIFICATIONS
Nominal Basket Diameter	12" / 305mm
Impedance	8 ohms
RMS Power Rating	50 Watts
Peak Power Rating	100 Watts
Usable Frequency Response	70Hz - 4kHz
Voice Coil Diameter	1.75" / 44.5mm
Sensitivity (1W/1m)	102dB
Magnet Weight	35 oz.
Net Weight	9.3lbs. / 4.2kg.
Shipping Weight	10.2lbs. / 4.63kg.
MOUNTING INFORMATION
Overall Diameter	12.02" / 305.3mm
Bolt Circle Diameter	11.63" / 295.4mm
Baffle Cutout Diameter	10.97" / 278.6mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.25" / 6.4mm
Overall Depth	6.2" / 157.5mm
MATERIALS
Basket	Pressed Steel
Voice Coil	Copper
Coil Former Material	Paper Former
Dust Cap	Zurette
Cone	Hemp
Cone Edge	Paper
Magnet	Alnico
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	104.86Hz
Impedance (Re)	6.45 ohms
Coil Inductance (Le)	0.61mH
Electromagnetic Q (Qes)	.71
Mechanical Q (Qms)	10.16
Total Q (Qts)	.66
Compliance Equiv. Vol. (Vas)	34.08Liters / 1.2 cu. ft.
BL Product (BL)	12.6 T-M
Voice Coil Overhang (Xmax)	0.8mm
Surface Area of Cone (Sd)	.05324m2

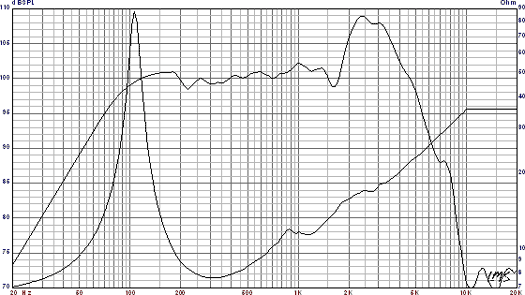

FREQUENCY RESPONSE GRAPH
