US Speaker - Eminence speakers - The Eminence Blue Tick Hound is a 12" guitar speaker with a smooth biting tone from the Eminence Patriot Series. The Eminence Blue Tick Hound speaker is an excellent upgrade or replacement for guitar cabinets for that classic British tone.

Genuine Eminence

12" GUITAR SPEAKER

THE BLUE TICK HOUND IS A 12" GUITAR SPEAKER THAT HANDLES 75 WATTS RMS & 150 WATTS PROGRAM
A VERY SMOOTH & CREAMY WARM TONE WITH SCOOPED MIDS
BREAKS UP NICE WHEN PUSHED
WELL SUITED FOR APPLICATIONS IN OPEN BACK CABINETS
AVAILABLE IN 8 OHMS ONLY

SMOOTH SOUND WITH LOTS OF TONE & JUST ENOUGH BITE!
	Blue Tick Hound-8 - 8 ohms SOLDOUT Item Price: $64.99

SPEAKER MODEL	BLUE TICK HOUND
SPECIFICATIONS
Nominal Basket Diameter	12" / 305mm
Impedance	8 ohms
RMS Power Rating	75 Watts
Peak Power Rating	150 Watts

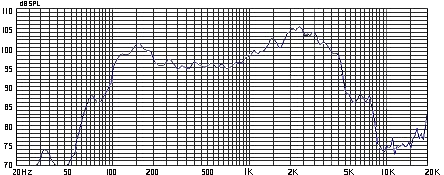

Usable Frequency Response	70Hz - 4.5kHz
Voice Coil Diameter	1.5" / 38.1mm
Sensitivity (1W/1m)	99dB
Magnet Weight	20 oz.
Shipping Weight	7.0lbs. / 3.2 kg.
MOUNTING INFORMATION
Overall Diameter	12.24" / 310.9mm
Bolt Circle Diameter	11.63" / 295.3mm
Baffle Cutout Diameter	11.04" / 280.4mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.25" / 6.4mm
Overall Depth	4.4" / 111.8mm
MATERIALS
Basket	Stamped Steel
Voice Coil	Copper
Coil Former Material	Kapton
Dust Cap	Zurette
Cone	Paper
Surround	Paper
Magnet	Ferrite
THIELE-SMALL PARAMETERS
Impedance (Re)	7.64 ohms
Coil Inductance (Le)	0.36mH
Total Q (Qts)	1.61
Voice Coil Overhang (Xmax)	.0mm
Surface Area of Cone (Sd)	.05258m2
