THIS 15" BIG BEN LEAD GUITAR SPEAKER HAS A DARK TIGHT SOUND! |
|
|
SPEAKER
MODEL |
|
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15.1" / 384mm |
|
Impedance |
8 ohms |
| RMS Power Rating | 225 Watts |
| Peak Power Rating | 450 Watts |

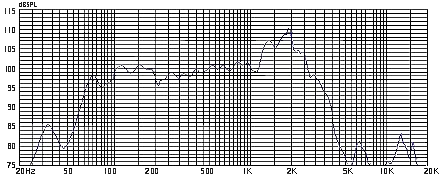

| Usable Frequency Response | 70Hz - 3.5kHz |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Sensitivity (1W/1m) | 100dB |
| Magnet Weight | 56 oz. |
| Shipping Weight | 16lbs. / 7.3 kg. |
|
MOUNTING INFORMATION |
|
|
|
15.125" / 384.2mm |
| Bolt Circle Diameter |
|
| Baffle Cutout Diameter | 13.8" / 350.5mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 6.1" / 154.9mm |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Kapton |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 85 Hz |
| Impedance (Re) | 6.06 ohms |
| Coil Inductance (Le) | 0.51mH |
| Electromagnetic Q (Qes) | 1.04 |
| Mechanical Q (Qms) | 10.63 |
| Total Q (Qts) | .94 |
| Compliance Equiv. Vol. (Vas) | 77.7Liters / 2.74 cu. ft. |
| BL Product (BL) | 12.1 T-M |
| Voice Coil Overhang (Xmax) | 0.0mm |
| Surface Area of Cone (Sd) | .08563m2 |
![]() |
|
