BEYMA 8AG/N - 8" FULL-RANGE LOUDSPEAKER

8" FULL-RANGE SPEAKER HAS A NICE SMOOTH SOUND HANDLES 70 WATTS PROGRAM!

Beyma 8AGN

Item Price: $59.95

WOOFER MODEL

8AG/N

Specifications

Nominal Basket Diameter

8" / 200mm

Impedance

8 ohms

AES Power Rating

35 Watts

Program Power  70 Watts

Frequency Response

60Hz - 18kHz

Sensitivity (1W/1m)

96dB

Voice Coil Diameter

1.75" / 44.5mm

Mounting Information

Overall Diameter 8.07" / 205mm
Bolt Circle Diameter 7.68" / 195mm
Baffle Cutout Diameter- 7.1" / 180mm
No. Of Mounting Holes 6
Mounting Hole Diameter .2 / 5mm
Overall Depth 3.14" / 84mm
Net Weight 3.3 lb. / 1.5 kg.

Materials

Basket Steel
Cone Paper
Surround Paper
Voice Coil Copper
Magnet Ferrite
Frequency Response & Distortion Curves
Beyma 8AG/N Frequency Response

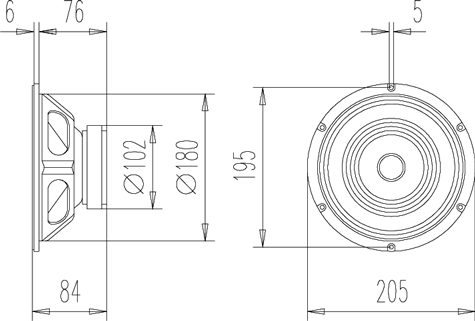

Mounting Dimensions
Beyma 8AG/N Drawing
