BEYMA 12GA50 - 12" FULL-RANGE LOUDSPEAKER
|
|
|
BEYMA 12GA50 - 12" FULL-RANGE LOUDSPEAKER |
|
12" FULL-RANGE MUSICAL INSTRUMENT SPEAKER OR LOUDSPEAKER W/ A CLEAN WARM SOUND! |
|
|
|
Item Price: $120.75 |
|
WOOFER MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
250
Watts |
| Program Power |
500
Watts |
|
Frequency
Response |
70Hz
- 18kHz |
|
Sensitivity
(1W/1m) |
102dB |
|
Voice
Coil Diameter |
2" / 52mm |
| Recom. Enclosure Volume | .7-2.45 ft3 / 20-70 Liters |
| Voice Coil Length | 9 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 10 N/A |
| Magnetic Assembly Weight | 6.1 lb. / 2.75 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.3" / 312mm |
|
Bolt
Circle Diameter |
11.6"
/ 294.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 10.9" / 277.5mm |
| - Rear Mount | 11.02" / 280mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.19 ft3 / 5.5 Liters |
|
Overall
Depth |
5.47"
/ 139mm |
|
Net
Weight |
7.81 lb. / 3.55 kg. |
| Shipping Weight | 8.81 lb. / 4 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Paper |
| Spider | Cotton |
| Voice Coil | Aluminum Wire |
| Former | Kapton |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 90 Hz |
| Impedance (Re) | 6.2 ohms |
| Coil Inductance (Le) | 0.6 mH |
| Mechanical Q (Qms) | 14.8 |
| Electrical Factor (Qes) | 1.26 |
| Total Q (Qts) | 1.16 |
| Comp. Equivalent Vol. (Vas) | 1.2 ft3 / 34 Liters |
| Voice Coil Overhang (Xmax) | 2.0 mm |
| Surface Area of Cone (Sd)m2 | 0.053 |
| Reference Efficiency | 2.1% |
| Displacement Volume (Vd) | 105 cm3 |

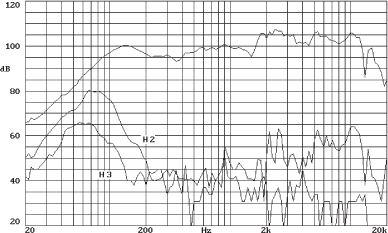

| Frequency Response & Distortion Curves | |
 |
|
|

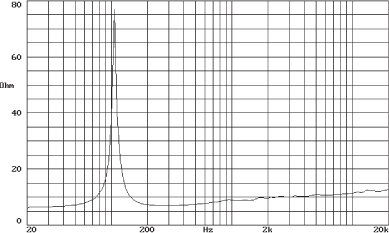

Impedance Curve |
|
 |
|

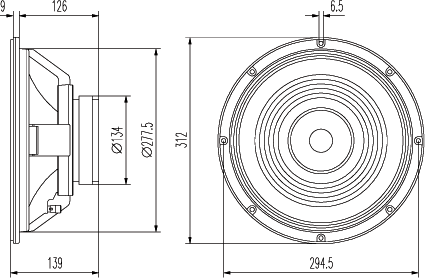

| Mounting Dimensions | |
 |
|
