B&C DE700 is a 1.5" high frequency compression driver- B&C DE700 high frequency drivers - B&C 1.5" high power efficient high frequency driver for speaker systems. B&C DE700 high frequency drivers available now.

B & C PROFESSIONAL COMPONENTS

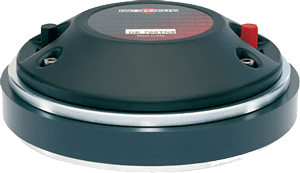

DE700TN - 1.5" HIGH FREQUENCY DRIVER

THE B&C DE700TN IS A 1.5" HIGH FREQUENCY COMPRESSION DRIVER THAT HANDLES 80 WATTS AES STANDARD & 160 WATTS PROGRAM
TITANIUM DIAPHRAGM DELIVERS CLEAR TRANSPARENT HIGHS
SHORTING COPPER CAP FOR EXTENDED HF RESPONSE
THE B&C DE700 HIGH FREQUENCY DRIVER IS OPTIMIZED FOR SPEAKER SYSTEMS IN SOUND REINFORCEMENT SYSTEMS, STAGE MONITORS, FRONT OF HOUSE SYSTEMS, CONCERT, THEATER, ETC.

LARGE 3" VOICE COIL - NICE POWER HANDLING & CLEAN HIGHS!
	DE700TN
	No Longer Available

SPEAKER MODEL	DE700TN
SPECIFICATIONS
Throat Diameter	1.5" / 38.1mm
Impedance	8 ohms
AES Power Rating	110 Watts
Program Power	220 Watts
Frequency Response	500Hz - 18kHz
Recommended Crossover	800Hz
Sensitivity (1W/1m)	107.5dB
Voice Coil Diameter	3" / 75mm
Winding Material	Aluminum
Inductance	0.14mH
Diaphragm Material	Titanium
Flux Density	1.9T
MOUNTING INFORMATION
Overall Diameter	7.1" / 180mm
Mounting Holes	(4)M6 holes on 90°- 4" Dia.
Depth	2.8" / 70mm
Net Weight	13.2 lbs./ 6 kg.

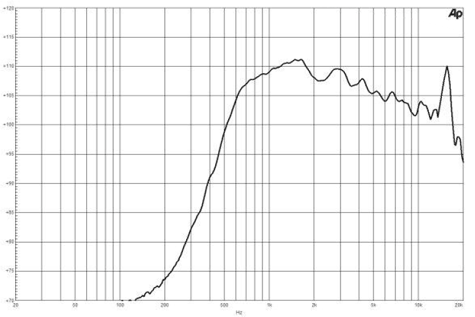

FREQUENCY RESPONSE

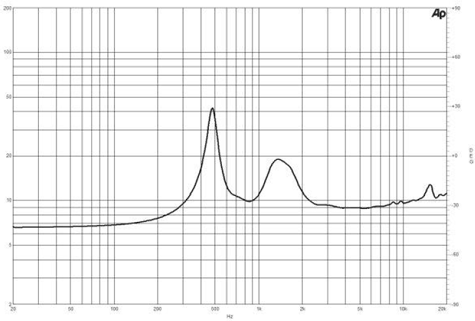

IMPEDANCE
