B & C PROFESSIONAL COMPONENTS

DE610 - 1.4" HIGH FREQUENCY DRIVER

THE B&C DE610 IS A 1.4" HIGH FREQUENCY COMPRESSION DRIVER THAT HANDLES 80 WATTS AES STANDARD & 160 WATTS PROGRAM
TITANIUM DIAPHRAGM DELIVERS CLEAR TRANSPARENT HIGHS
THE B&C DE610 HIGH FREQUENCY DRIVER IS OPTIMIZED FOR SPEAKER SYSTEMS IN SOUND REINFORCEMENT SYSTEMS, STAGE MONITORS, FRONT OF HOUSE SYSTEMS, CONCERT, THEATER, ETC.
AVAILABLE IN 8 OR 16 OHMS

DELIVERS CLEAN HIGHS WITH NICE POWER HANDLING & GOOD EFFICIENCY!
	DE610
	8 Ohms Item Price: $197.10
	16 Ohms Item Price: $197.10

SPEAKER MODEL	DE610
SPECIFICATIONS
Throat Diameter	1.4" / 36mm
Impedance	8 or 16 ohms
RMS Power Rating	80 Watts
Program Power	160 Watts
Frequency Response	1kHz - 18kHz
Recommended Crossover	1.2kHz
Sensitivity (1W/1m)	108dB
Voice Coil Diameter	2.5" / 65mm
Winding Material	Aluminum
Inductance	0.15mH
Diaphragm Material	Titanium
Flux Density	1.75T
MOUNTING INFORMATION
Overall Diameter	6.1" / 156mm
Mounting Holes	(4)M6 holes on 90°- 4" Dia.
Depth	2.5" / 65mm
Net Weight	8.4 lbs./ 3.8 kg.
FREQUENCY RESPONSE

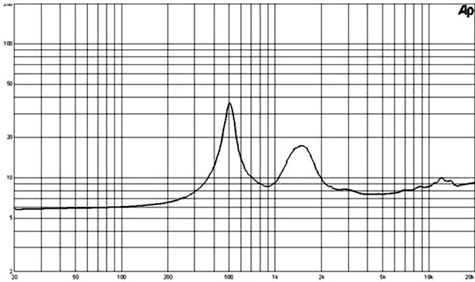

IMPEDANCE CURVE
