THE B&C DE500 IS A LIGHTWEIGHT NEODYMIUM 1 INCH DRIVER THAT DELIVERS CLEAN NATURAL MIDS & MELLOWER HIGHS SOUND! |
|
|
|
DE500 |
|
No Longer Available |
|
|
B & C PROFESSIONAL COMPONENTS |
|
DE500 - 1" HIGH FREQUENCY DRIVER |
|
THE B&C DE500 IS A LIGHTWEIGHT NEODYMIUM 1 INCH DRIVER THAT DELIVERS CLEAN NATURAL MIDS & MELLOWER HIGHS SOUND! |
|
|
|
DE500 |
|
No Longer Available |
|
|
SPEAKER
MODEL |
DE500 |
|
SPECIFICATIONS |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
50
Watts |
| Program Power | 100 Watts |
|
Frequency
Response |
1.0kHz
- 18kHz |
| Recommended Crossover | 1.5kHz |
|
Sensitivity
(1W/1m) |
107dB |
|
Voice
Coil Diameter |
1.7" / 44mm |
| Winding Material | Aluminum |
| Inductance | 0.11mH |
| Diaphragm Material | Titanium |
| Flux Density | 1.9T |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
4" / 102mm |
| Mounting Holes | (2)M6 holes on 180°- 3" Dia. |
| Depth | 2.1" / 54mm |
| Net Weight | 3.3 lbs./ 1.5 kg. |
|

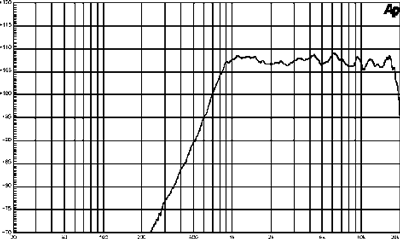

FREQUENCY RESPONSE & DISTORTION CURVES |
|
|
|
|
