B & C PROFESSIONAL COMPONENTS

DE12 - 1" HIGH FREQUENCY DRIVER

THE B&C DE12 IS A 1" HIGH FREQUENCY COMPRESSION DRIVER THAT HANDLES 25 WATTS AES STANDARD & 50 WATTS PROGRAM
VERY GOOD PERFORMANCE AND IS AFFORDABLY PRICED
THE B&C DE12 HIGH FREQUENCY DRIVER IS OPTIMIZED FOR SPEAKER SYSTEMS IN SOUND REINFORCEMENT SYSTEMS, THEATER, ETC.

THE B&C DE12 HAS A GOOD MIDS AND A MORE MELLOW HIGH RESPONSE & HANDLES 50 WATTS PROGRAM!

B&C DE12

DE12

Item Price: $73.92

SPEAKER MODEL	DE12
SPECIFICATIONS
Throat Diameter	1" / 25mm
Impedance	8 ohms
RMS Power Rating	25 Watts
Program Power	50 Watts
Frequency Response	1.5kHz - 18kHz
Recommended Crossover	2.2kHz
Sensitivity (1W/1m)	106dB
Voice Coil Diameter	1.4" / 36mm
Winding Material	Aluminum
Inductance	0.14mH
Diaphragm Material	Mylar
Flux Density	1.45T
MOUNTING INFORMATION
Overall Diameter	3.54" / 90mm
Mounting Holes	(2) M5 holes on 180°- 3" Dia.
Depth	2" / 49mm
Net Weight	2.2 lbs./ 1 kg.

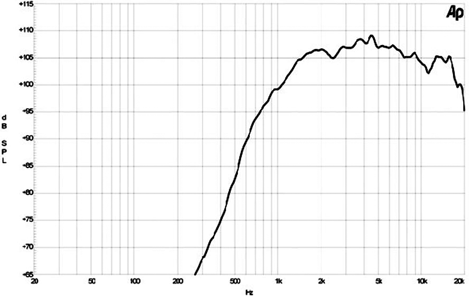

FREQUENCY RESPONSE
