B & C PROFESSIONAL COMPONENTS

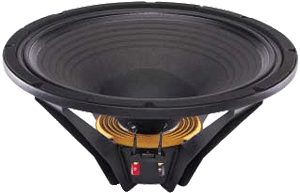

15 HPL76W-4 - 15" NEODYMIUM WOOFER

THE B&C 15HPL76W-4 IS A 15" HIGH POWER WOOFER THAT HANDLES 350 WATTS AES STANDARD & 700 WATTS PROGRAM POWER
LIGHTWEIGHT NEODYMIUM MAGNET
CLEAN TRANSPARENT BASS & LOW DISTORTION
THE B&C 15HPL76W-4 SPEAKER IS OPTIMIZED FOR HIGH QUALITY SPEAKER SYSTEMS IN SOUND REINFORCEMENT SYSTEMS, THEATER, ETC.
AVAILABLE IN 4 OHMS

15" LIGHTWEIGHT NEODYMIUM W/ EXTRA POWER HANDLING OF 700 WATTS!
	15HPL76W-4
	No Longer Available

SPEAKER MODEL	15HPL76W-4
SPECIFICATIONS
Nominal Basket Diameter	15" / 380mm
Impedance	4 ohms
RMS Power Rating	350 Watts
Program Power	700 Watts
Frequency Response	40Hz - 2.0kHz
Sensitivity (1W/1m)	97dB
Voice Coil Diameter	3" / 76mm
Winding Material	Copper
Former Material	Glass Fibre
Winding Depth	.73" / 18.5mm
Magnetic Gap Depth	.39" / 10mm
Flux Density	1.15T
MOUNTING INFORMATION
Overall Diameter	15.5" / 394mm
Bolt Circle Diameter	14.7" / 374mm
Baffle Cutout Diameter	14" / 355mm
Depth	6.7" / 171mm
Flange & Gasket Thickness	.5" / 12.5mm
No. Of Mounting Holes	8
Net Weight	7.7 lbs./ 3.5 kg.
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	38 Hz
Impedance (Re)	3.1 ohms
Electrical Factor(Qes)	.44
Mechanical Q (Qms)	5.5
Total Q (Qts)	.41
Compliance Equiv. Vol. (Vas)	155.76 Liters/5.5cu. ft.
Voice Coil Overhang (Xmax)	5.0mm
Reference Efficiency	1.9%
BL Factor	19.4 T-M
Coil Inductance (Le)	2.0mH
