THE B&C 15FW76 IS A 15" HIGH EFFICENCY MID-BASS SPEAKER W/ GOOD POWER HANDLING OF 500 WATTS AES!
15FW76
Item Price: $254.58
|
B & C PROFESSIONAL COMPONENTS |
|
15FW76 - 15" HIGH EFFICIENCY SPEAKER |
|
THE B&C 15FW76 IS A 15" HIGH EFFICENCY MID-BASS SPEAKER W/ GOOD POWER HANDLING OF 500 WATTS AES! |
|
|
|
15FW76 |
|
Item Price: $254.58 |
|
|
SPEAKER
MODEL |
15FW76 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
500
Watts |
| Program Power | 1,000 Watts |
|
Frequency
Response |
40Hz - 2.0kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
| Winding Material | Copper |
| Former Material | Glass Fiber |
| Winding Depth | .75" / 19mm |
| Magnetic Gap Depth | .43" / 11mm |
| Flux Density | 1.25T |
| Recommend Enclosure Size | 2.82 cu. ft. / 80 Liters |
| Recommend Tuning | 50Hz |
| MATERIALS | |
| Basket | Cast Aluminum |
| Cone | Treated Paper |
| Cone Shape | Exponential |
| Surround Shape | Triple Roll |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Voice Coil | Copper |
| Former | Glass Fiber |
| Waterproof Cone Treatment | Front Side |
| Magnet | Ferrite |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
15.5" / 394mm |
| Bolt Circle Diameter | 14.7" / 374mm |
| Baffle Cutout Diameter | 13.9" / 354mm |
| Depth | 6.97" / 177mm |
| Flange & Gasket Thickness | .55" / 14mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 20.2 lbs./ 9.2kg. |
| Net Weight | 23.1 lbs./ 10.5kg. |
|
THIELE-SMALL PARAMETERS |
|
|
Resonant Frequency (fs) |
40 Hz |
|
Impedance
(Re) |
5.1 ohms |
| Electrical Factor(Qes) | .22 |
| Mechanical Q (Qms) | 5.1 |
| Total Q (Qts) | .21 |
| Compliance Equiv. Vol. (Vas) | 138 Liters/4.9cu. ft. |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Reference Efficiency | 3.9% |
| Diaphragm Mass (Mms) | 117 Grams |
| BL Factor | 26.2 T-M |
| Coil Inductance (Le) | 1.4mH |
|

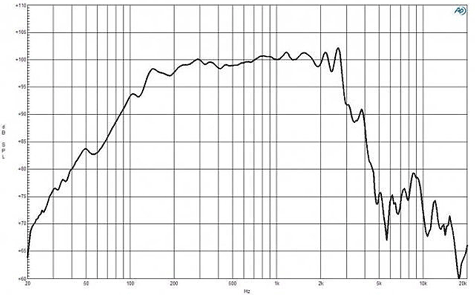

SPL VS. FREQUENCY |
|
 |
|

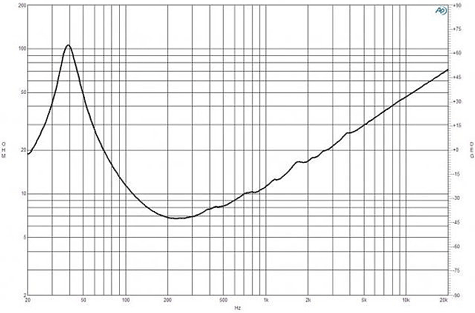

| IMPEDANCE | |
 |
|

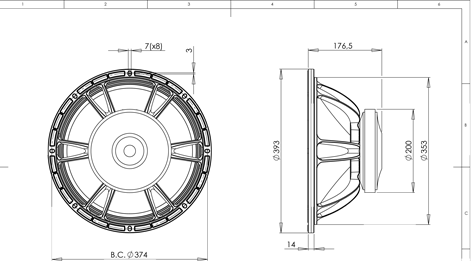

| DIMENSIONAL DRAWING | |
 |
|
